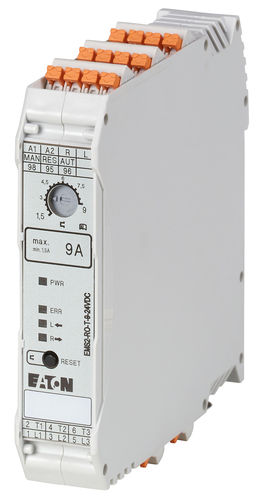

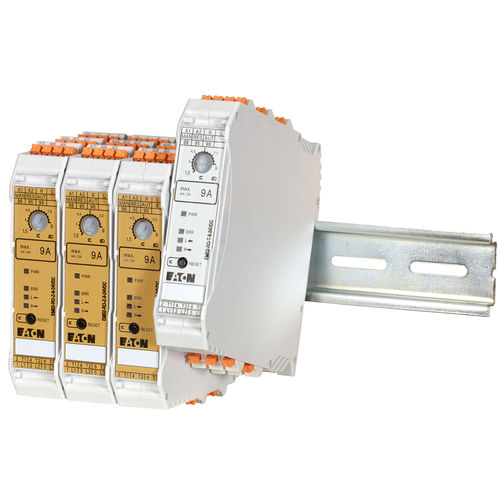

The EMS2 electronic motor starter from Eaton's Moeller series combines all the functions of a conventional motor starter in a single, highly compact device. With a width of only 22.5 mm, it can be used in any application where motors up to 3 kW need to be driven. The EMS2 electronic motor starter can handle DOL and reversing starts, while offering wide-range overload protection and an emergency-stop function (Sil3). The SmartWire-DT interface replaces the conventional control wiring and also provides additional information.

• Wide-range overload protection
• Emergency-stop contactor (SIL3)
• 22.5 mm wide
• Additional monitoring functions via SmartWire-DT
• Hybrid switching technology
• ATEX approval
• Short-circuit protection

Electronic motor protection, integrated reversing starter, safe stop, intelligent networking, motor starter with long service life (hybrid switching technology)

Compared to conventional motor starters, the EMS2 makes it much easier and faster to implement applications with safe stop in accordance with SIL 3 and PLe. The multi-functional design makes it easier to set up the main/control circuits, thereby reducing the number of hardware components by 70 %.

Parameter Name	Parameter Value
Type	motor
Technology	electronic
Electrical characteristics	overload short-circuit three-phase low-voltage
Other characteristics	compact intelligent DOL DIN rail mounted
Power (W)	60 - 3000
