About

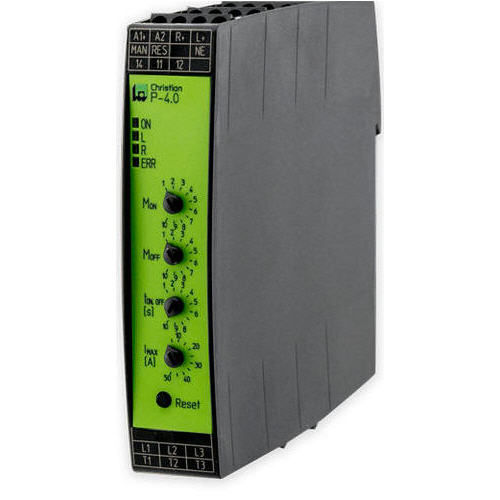

The P4.0 Series is a range of TELE soft starters that is designed to reduce mechanical stress on drives during the acceleration and start-up process of motors. The TELE P4.0 Softstarter is a 2-phase controlled device and has a width that measures only 22.5mm (0.89in).
Furthermore, the P4.0 Series has a compact, industrial design with no moving parts as such as fans.
Start- and stop-function and current limiter are integrated for no extra cost. The optional, integrated current monitoring and motor protection features make conventional MCB units as such as contactor combinations obsolete.
Advantages:
- Reversing anticlockwise
- Reversing clockwise
- Soft start
- Soft stop
- Motor protection (optional)
- Galvanic separation via forcibly guided contacts (optional)
- Blocking protection
- Hybrid relay combines the benefits of relay technology with non-wearing semiconductor technology
- High availability by temperature monitoring of semiconductors
Features:
- To reverse 3 phase motors from 550W (0.75hp) up to 4kW (5.5hp)
- Settings for starting torque, deceleration torque, soft-start /-stop, overcurrent limit or rated motor current
- 4 LEDs for status indication
- Reversing with relays without current, soft-start, soft-stop with thyristor
- Galvanic separated 24V-inputs for clockwise- and anticlockwise
- Relay indicator output for operation
- Galvanic separation between the control circuit and power circuit
Applications:
- Reversing operation for door and gate controls, bridge drives and lifting applications with monitoring of blockage
- Conveyor systems with monitoring of blockage
- Actuating drives in process controls with blockage monitoring
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Technology |
|
| Electrical characteristics |
|
| Other characteristics |
|
| Current (A) |
9 - 9
|
| Power (W) |
4000 - 4000
|
