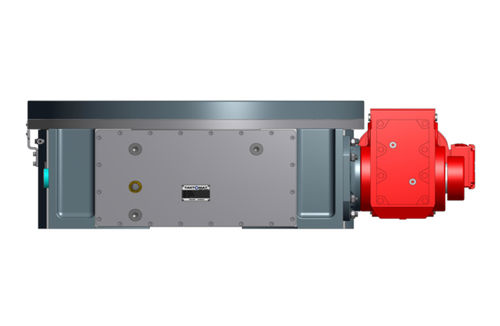

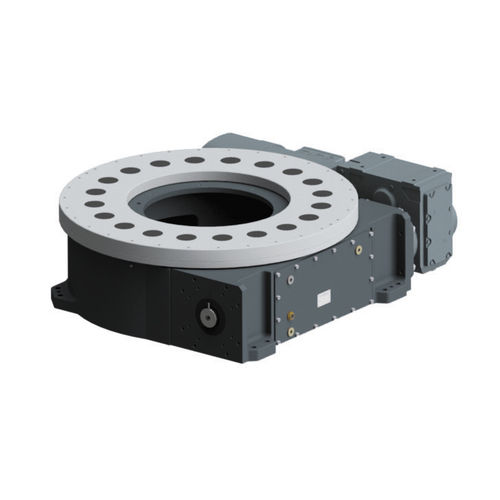

The flexible rotary indexer TMF is ideal for using in the assembly, in the automotive industry, for welding machines,
in printing machines, in the food industry, in the medical technology and the microelectronics.

Features and user benefits
- Flexible division
- Low construction height because of a flat output flange
- Large number of cam followers
– Accordingly always at least 4 piece engaged
- Almost no margin because of biased cam followers
- Through optimally hardened barrel cams and cam followers higher transferable torques
- Design possible as rotary drum
- Maintenance free through oil bath lubrication
- Simple readjustment of the output bearing through segmental arches in peeling sheet design
- Large center hole for e. g. accommodation of supply lines
- Large bearing surface for mounting components
- Specially developed for the automotive industry and other applications in the heavy duty sector
- Various installation positions possible

Parameter Name	Parameter Value
Operation	motor-driven
Configuration	horizontal
Applications	for machine tools for welding
Other characteristics	flexible
