TCR series of programmable rotary tables is designed for applications where high compact and robust solutions are required.

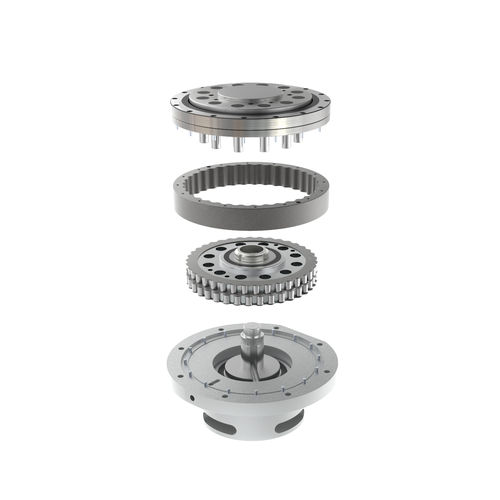

The CDS new generation of cycloid reducers has an improved technical design, with an external ring gear, the inner surface profile of which is the external offset of an epitrochoid, and engages with the planet wheel by means of cylindrical rollers.

The competitive price and the reduced lead time together with CDS quality and reliability make this series very attractive for the market.

Number of Stops: freely programmable positioning
Index Angle: Ratio 72:1
Dynamic capacity: up to 300 kg m2
Output motion axis bearings
- Max Axial Force: 19000 N
- Radial force: 41000 N
- Tilting: 2500 Nm
Precision: <=3 arcmin

Parameter Name	Parameter Value
Operation	motor-driven
Configuration	horizontal vertical tilting
Applications	for welding dosing marking
Other characteristics	rotating servo-driven high-precision flexible high-performance crossed roller bearing brushless
Diameter (mm)	136 - 250
