These rotary tables are used for many kinds of heavy machining and precision turning, capable as a 4th axis. Other uses are ultra-precise applications such as laboratory, production part rotation, inspection, indexing to precise angles, laser marking, angular testing and measurements.

Robust as a stand-alone unit with several modes to automate your rotation and indexing, and controlled by other CNC controllers for additional mult-axis sequences. Repeatability is excellent due to the ground worm gears.
The table top center bearing is extremely precise: concentricity is less than .0004 inches, typically as small as .0002 inches. This gives you ultra center positioning, makes your parts very round.

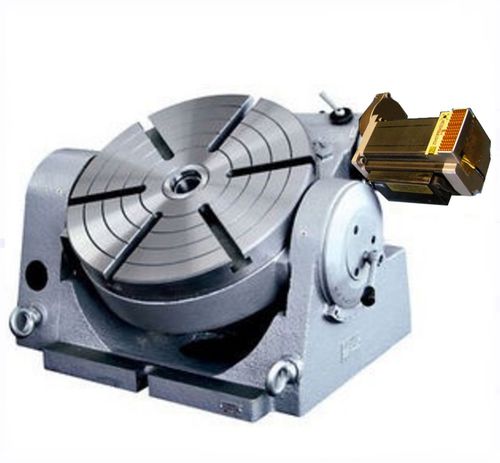

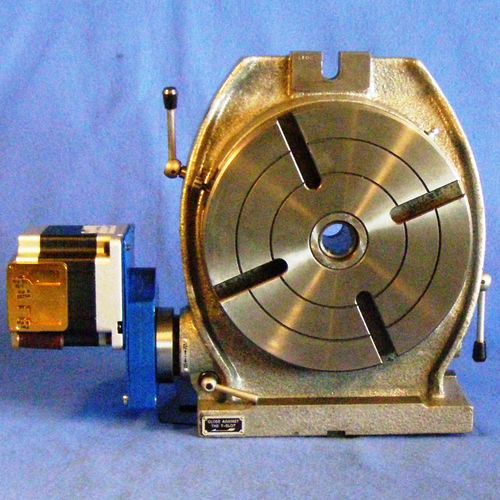

Every Excitron rotary table can be mounted horizontally or vertically since the thick grease will not run out. If you order the HV model, then nothing else is needed for vertical mounting. If you order the non-HV model and wish to mount it vertically, then you need some heavy duty angle plates.

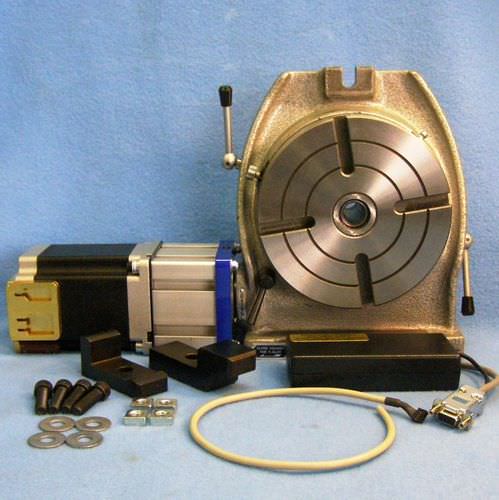

All MRT6, 8, 10, 12, 16, 20, 24, 25, 30, and 39 inch rotary tables are CNC ready-to-go systems, and include:
• Heavy-duty steel rotary table with quick mount T-slots
• Precision stepper motor and integrated controller with built-in 10 Joystick switches for 10 independent standalone motions.
• Motor and gear drive use ultra-precision spur gears and are fully enclosed.
• 2 TTL 3.3v serial ports built-in, and one 39" (1m) USB-TTL adapter serial cable.
• Two 4 inch cables with 3 pin housing and crimps for general DIY inputs, unwired at open end.
• 20 or 24 volt AC/DC power supply and AC cable, 50/60 hz, 100-240 VAC, works anywhere in the world.

Parameter Name	Parameter Value
Operation	motor-driven
Configuration	horizontal vertical
Applications	for machining centers
Other characteristics	CNC heavy-duty universal small laser marking laboratory
