Spindle Through Hole Dia (mm): 70
Centre Height (mm): 140
Indexing Accuracy (sec): 20
Repeatability (sec): 4

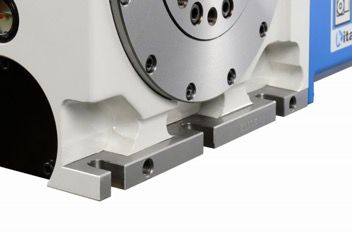

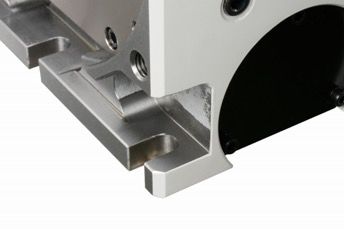

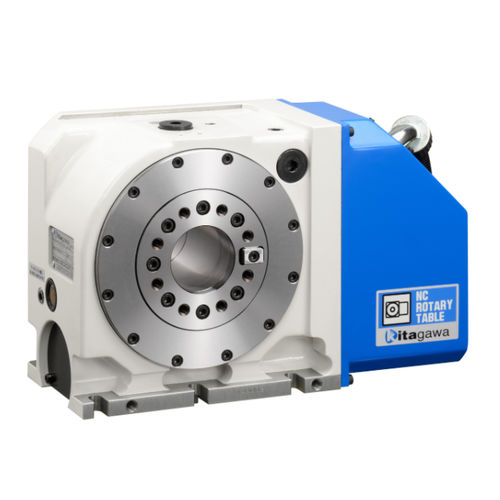

MK200 Rotary Table with compact design, high performance nd improved mounting. The innovative triple disc brake system & friction welded construction gives substantially increased clamping force and compact design.

Max. Faceplate diameter (mm): 200
Register diameter on faceplate (mm): Ø65H7
Spindle Through Hole Diameter (mm): Ø70
Centre Height (mm): 140
Clamping method: Pneumatic
Clamping Torque (N.m): 570
Motor axis reduced inertia (kg.m2): 0.00010
Servomotor (for FANUC specification): iF 4/5000
Gear ratio: 1/90Max
Spindle Speed (FANUC specification): 33.3 rpm
Allowable Cutting Torque (N.m): 270
Allowable Work Inertia (kg.m2): 1
Indexing Accuracy (sec): 20
Repeatability (sec): 4
Weight (kg): 60

Wide selection of rotary joints:

Compact built-in rotary joints can be selected from 4-, 5- and (6+1)-port types. The centre port of (6+1)-port type has a φ12.5mm multi-purpose hole for high-pressure coolant, work seating detection sensor, etc.
25MPa high-pressure rotary joints (4-port or 6-port) are also available for miniaturization of fixtures and fast actuation.

Parameter Name	Parameter Value
Operation	motor-driven
Configuration	vertical
Applications	for EDM
Other characteristics	NC compact
Diameter (mm)	135 - 135
