JUARISTI milling and turning tables
We develop tables on demand with linear or hydrostatic guiding
JUARISTI rotary tables enable stable and ergonomic milling and turning operations to be carried out. They are highly precise in positioning and make smooth movements thanks to linear or hydrostatic guiding. They cover a wide range of workspaces and are compatible with up to 180 tonne pieces.

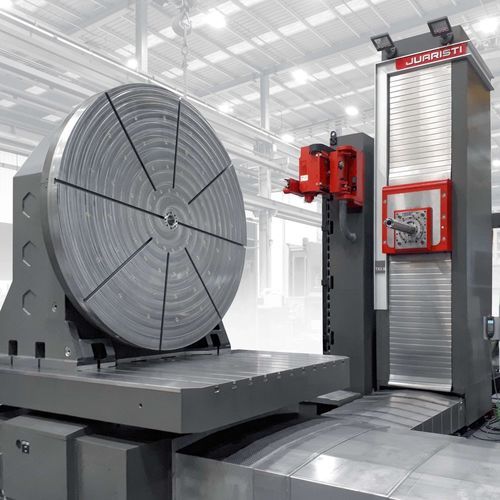

TILTING TABLES MGT
CAPACITIES FROM 40 TO 100 TONNES.
10° TILTING ANGLE.
DIMENSIONS UP TO 4,000×4,000 MM.

We develop custom-made tilting tables (up to a maximum of 10º) for our customers with respect to the horizontal plane with total angular position control. These tables enable productive, accurate machining on parts that require special angle part strikes.

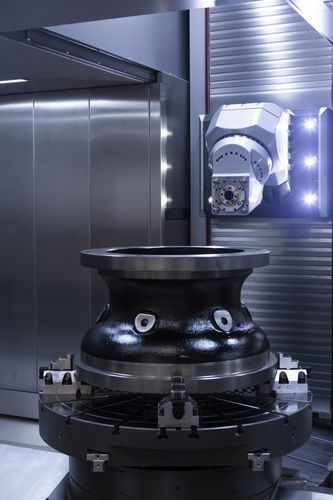

TURNING TABLES MT
TABLE DIAMETER FROM 1,450 TO 3,000 MM.
DRIVE POWER FROM 46 TO 2×51 KW.
SPINDLE SPEED OF 100 TO 400 MIN-1.
LOAD CAPACITY FROM 5 TO 50 TONNES.
We supply optimal turning tables for medium volume parts. They have a hydrostatic or ball screw base and are equipped with Balance Control technology, a system that makes use of state-of-the-art sensors. This system allows the machine to process the position of the parts at all times and provide information to correct imbalances resulting from imbalanced or asymmetric masses.

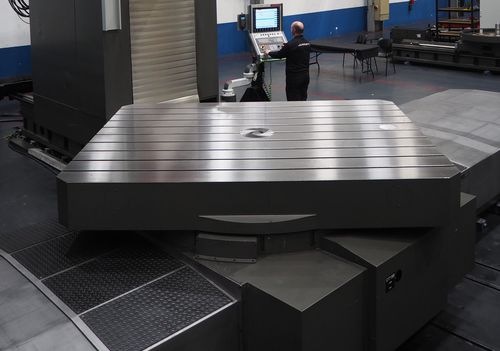

ROTO-TRAVERSING TABLES MG
LINEAR OR HYDROSTATIC GUIDING FOR THE CROSS MOVEMENT.
LOAD CAPACITY FROM 8 TO 180 TONNES.
TABLE DIMENSIONS FROM 1,000×1,200 MM TO 5,000×6,000 MM.
CROSS TRAVEL FROM 1,000 TO 6,000 MM.

Parameter Name	Parameter Value
Operation	motor-driven
Configuration	tilting
Applications	for milling for turning
Other characteristics	CNC rotating automatic linear custom
Diameter (mm)	450 - 3000
