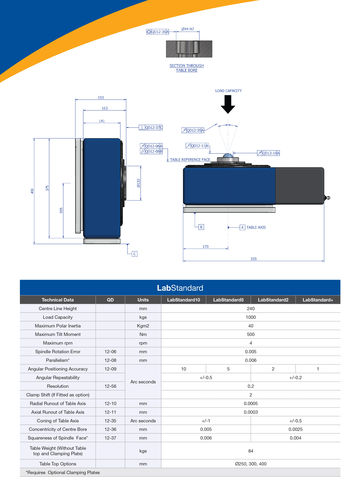

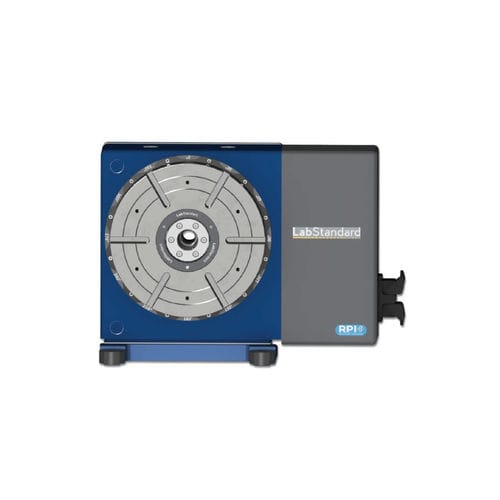

LabStandard

HIGH PRECISION ANGULAR POSITIONING, CALIBRATION AND GEOMETRY INSPECTION

Ultra precise rotary tables intended for fine inspection, metrology and test applications.

Designed for horizontal and vertical applications with self-locking worm gearing and a high accuracy angular encoder ensures sensitivity and fine positioning for metrology and precision testing.

Measurement Capacity:

- Horizontal or vertical applications
- Sizes Ø250mm, Ø300mm, and Ø400mm
- Overall height 225mm (axis vertical)
- Centreline height 240mm (axis horizontal)
- Load capacities up to 1,000kgs
- Load moment up to 500Nm
- Powerful pneumatic clamp (optional)
- Angular accuracy 2 arc seconds
- Angular repeatability 0.5 arc seconds

Parameter Name	Parameter Value
Operation	motor-driven
Configuration	horizontal vertical
Other characteristics	high-precision pneumatic
Diameter (mm)	250 - 300
