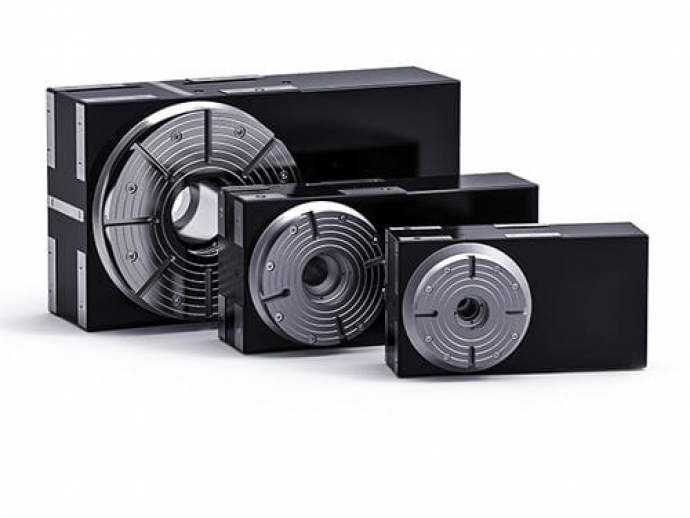

CNC rotary tables of the ETS series are our solution for your 4th axis. The ETS models are equipped with a spindle holder according to ISO 702-1. Interchangeable discs for all common clamping systems are additionally available.

Spindle hole diameter - mm - 45 durchg.; 60 H7
Tip height - mm - 110
Width of the T-slot - mm - 12 H7
Clamp - - Pneu / Hydr
Clamping torque - Nm - 300 / 550
Positioning accuracy - arcsec - ± 5
Repeatability - arcsec - ± 2
Rotational speed - min-¹ - 75
Gear ratio - - 40 : 1
Weight - kg - 70
max. moment of inertia - kg m² - 2

Parameter Name	Parameter Value
Operation	motor-driven
Configuration	horizontal
Applications	for machine tools
Other characteristics	CNC
Diameter (mm)	200 - 200
