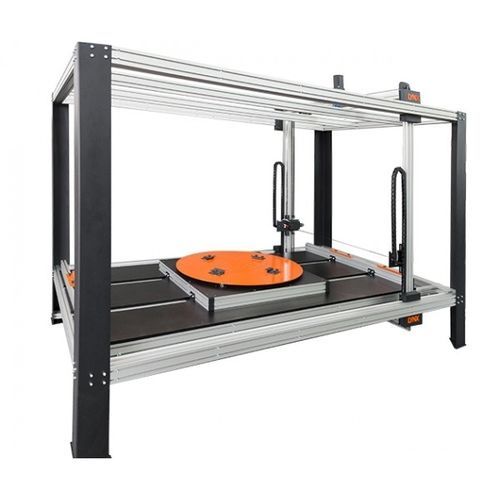

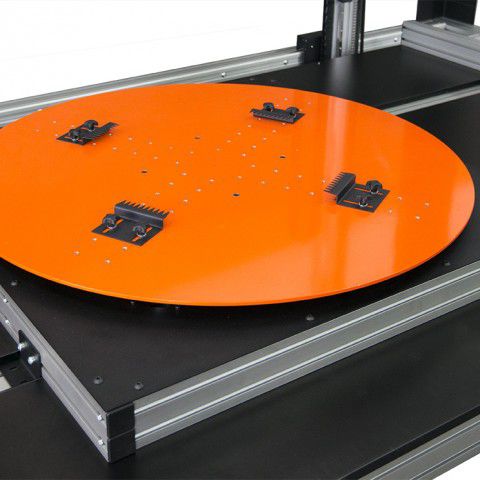

The 3D rotary table is used for carving various types of 3D objects: symmetric (e.g. sphere, vase, bottle) and asymmetric (e.g. chess piece, car, sculpture). This fully automatic, computer-controlled add-on to the CNC cutting machine is operated by a stepper motor. The rotary table is compatible with all LYNX TERMCUT foam cutters models. To start using it just place it on the machine table, position the foam block, and start carving.
The CNC machine’s rotary table can be used together with shape or straight wire.

3D Rotary Table + Shape Wire

If you want to carve multiple symmetric-shaped elements, use shape wire. A shape wire is a thick wire (with a diameter of 1mm or greater); bend it to form the contour of the symmetric 3D object. Mount the wire on the holder. The cutting motion is straightforward. The shaped wire goes into the material, stops, and the table rotates 360 degrees. After rotation, the shaped wire is pulled out of the material.

If you want to carve asymmetric 3D objects (car, chess piece), use the STYRO3D program provided with the LYNX TERMCUT foam cutter. It automatically generates data for individual cutting sections for asymmetric 3D objects. Prepare the object’s design in RAW, STL, or DXF format. Import the 3D file into STYRO3D, set cutting parameters and precision (number of cutting sections), and start carving

3D Rotary Table + Straight Wire
For carving symmetric 3D objects, first, prepare the contour design. Do this in the LYNX TERMCUT software or import predesigned vector graphics. Set the number of cutting sections, ranging from 4 to 180, depending on whether you want a quadrilateral or completely circular shape.

Parameter Name	Parameter Value
Operation	motor-driven
Configuration	horizontal
Applications	for machine tools
Other characteristics	CNC small automatic
Diameter (mm)	600 - 600
