Two variants

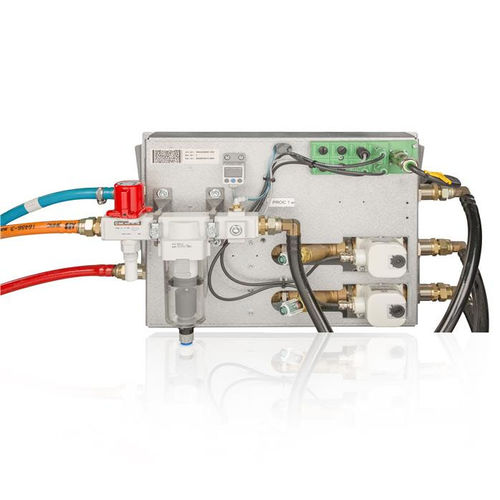

The application equipment Water and Air unit has two variants:
Basic variant with one water return
Variant with second water return, prepared for customer options Robot foot as well as fence mounting

This water and air unit solution is based on ABB’s long experience of robot applications. It comprises pressure switch, cables, valves, hoses, routing, connectors and interface points.

When ordering a robot with the Water and Air unit, the unit is assembled, mounted and tested before delivery, which simplifies installation and commissioning. Choosing an ABB Water and Air unit brings a lot of advantages in terms of features and performance. Furthermore, ABB’s global presence makes it a safe choice due to local service support and training availabilities.

IRB 6700 SpotPack Spot Weld Function Package
The Water and Air unit is one of the components in the IRB 6700 SpotPack Spot Weld Function Package. Please find more information about this package in a separate data sheet.
Benefits
Prepared for servo driven guns of MFDC type of guns
Short installation time – the Water and air unit is assembled, mounted on the robot and tested before delivery
Air pressure switch as standard
Can be mounted on robot or on fence/wall
Module design, easy to repair

Basic functions
Water in circuit
Water return circuit
Air supply circuit
Pressure switch as standard

Options
Second water return
Split box cables
