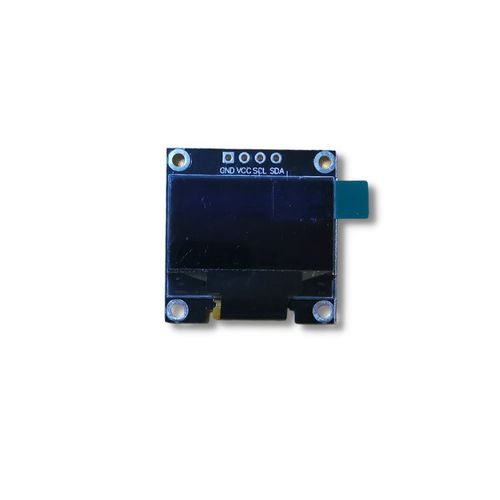

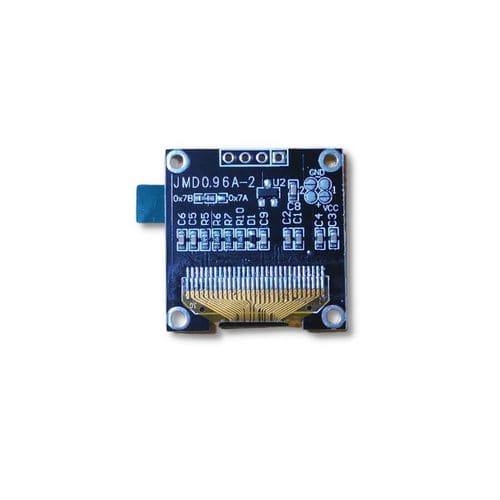

TOJMD096A | 0.96-inch OLED | 128×64 Dots | Monochrome White | I2C Interface | SSD1306 |
The OLED provides bright white graphics on a black background with a fast response along with high contrast visibility from any angle.
The display has a built-in SSD1306 controller and is RoHS compliant.
It is easily controlled by Arduino, ARM, and Raspberry Pi.


Diagonal (inch): 0.96
Resolution (pixel): 128×64
Display Type: PMOLED
Color: Monochrome, White
Optimal View: Full View
Voltage(V) - 3.3-4.2
Module Dimensions (mm) (W x H x D): 27.3x27.8x2.65
Active Area (mm) (W x H): 21.744×10.864
Pixel pitch(mm): 0.17 x 0.17
Pixel size(mm)：0.154x0.154
Luminance (cd/m2)：180 Typ.
Interface：I2C
Driver IC：SSD1306
Operational Temperature (°C)：-40 ~ +70
Storage Temperature (°C)：-40 ~ +85

Parameter Name	Parameter Value
Type	monochrome OLED
Format	128 x 64
Applications	industrial instrumentation
Other characteristics	I2C
Length (mm)	28 - 28
Width (mm)	27 - 27
Height	3 mm (0.1181 in)
