About

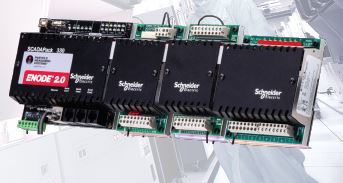

The ENODE® 2.0 controller is an open architecture, modular Ethernet device that combines proven Schneider SCADAPack technology with Particle Measuring Systems firmware and environmental monitoring know-how. It can be integrated directly into Facility Net software to monitor isolated digital and analog inputs and drive alarm output contacts (digital or relay).
Modular I/O components allow for flexible system designs
Ethernet 10BaseT/100BaseT connectivity to local networks
Data buffer stores samples when connection to software is interrupted
Up to 20 input/output modules connected to one processor
8 analog channels per module; 4-20 mA and 0-5 V signal compatible with an overall accuracy of 0.2%
16 digital input channels per module
8 relay output contacts per module
32 digital outputs per module
Certifications: UL, CE, ATEX II 3G
Modular design allows for a mixture of up to 128 signal inputs and/or 128 relay outputs per monitoring device, reducing cost per point
Sample interval is configured per channel, reducing the number of modules required for different applications
4-20 mA and 0-5 V analog input types are configured per channel, not per module, also reducing the number of modules
Easy to Use
Plug and play modules allow for ease of system expansion
Module recognition through Facility Net software speeds up system configuration
DIN rail mounting and removable screw terminals allow for simple installation
Distributed architecture allows for modules to be installed anywhere throughout the facility
Superior Performance
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Bus |
Ethernet, USB
|
| Type |
distributed
|
| Applications |
for monitoring system
|
| Number of inputs/outputs |
|
