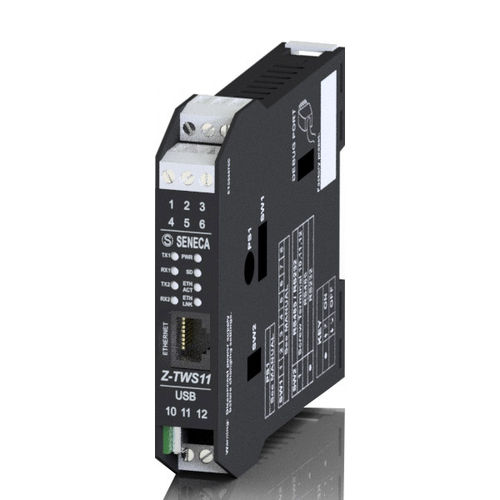

Z-TWS11 is a low-cost / high-performance Control System for plant automation (Straton - Soft PLC IEC 61131-3). Through to the integration with IDE Straton environment, Z-TWS11 supports standard
communication protocols such as Modbus RTU, Modbus TCP and custom protocols. Suitable for small control systems and monitoring applications.

Insulation - 1.500 V
Status indicators - Power supply
Serial communication
Ethernet data transfer
SD card
Input channels - Nr 2 settable voltage input 0..30 V or current input 0..20 mA
Ethernet - Nr 1 Ethernet port 10/100 Mbps (RJ45)
Porte Seriali - Nr 1 RS232/RS485 commutable
Nr 1 RS485
USB - Nr 1 USB side connector
Industrial protocols - ModBUS TCP-IP
ModBUS RTU
Protocolli custom
Network protocols - HTTP, FTP, SMTP
Prograsmming software - Z-NET4/StratON
Slot Micro SD - SD Card fino a 32 GB
Web configurator - Yes, embedded
PLC programming - IEC 61131 (Straton) with dedicated libraries
Operating temperature - -10..+50°C
Dimensions (LxHxP) - 17.5x100x112 mm
Certificazioni - CE
Norme - EN 61000-6-4, EN 61000-6-2

Parameter Name	Parameter Value
Function	monitoring automation
Type/technology	analog
Product applications	industrial
Other characteristics	high-performance
