INPUT
Type: three-phase, mono-phase
Voltage: 400 Vac 50-60 Hz, 230 Vac 50-60 Hz

OUTPUT
Voltage: 216 Vdc (230 Vac with mains)
Output circuits: 8

BATTERIES
Type: 18 x Pb 12 V (VRLA AGM with 10-year expected life)
Recharge: 80% of capacity reached in 12h

INSTALLATION
Type: single cabinet
Nr. cabinet: 1
Installation: wall mounted

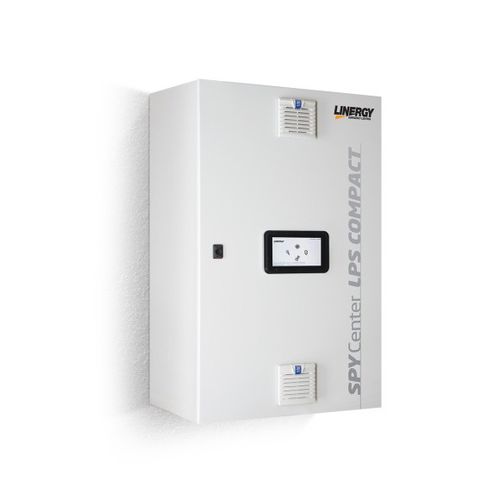

Supply and control system at low power for centralized power installations
Complete and non expandable central power unit
In combination with luminaires of the Central Battery family (control occurs on the line) or Spy Center family (control occurs on each luminaire)

TECHNICAL FEATURES
No inverter to convert direct current into alternating current
Supply: tri-phase 400Vac or mono-phase 230Vac
Electrical energy and Bus travel on the same wires (dedicated)
Batteries with a 10-year life declaration (as required by regulations)
System with touchscreen color display
Up to 160 luminaires can be controlled by using SCMDL-L
Manages 8 circuits without need for extra modules

Parameter Name	Parameter Value
Function	monitoring
Type/technology	centralized
Product applications	for lighting
