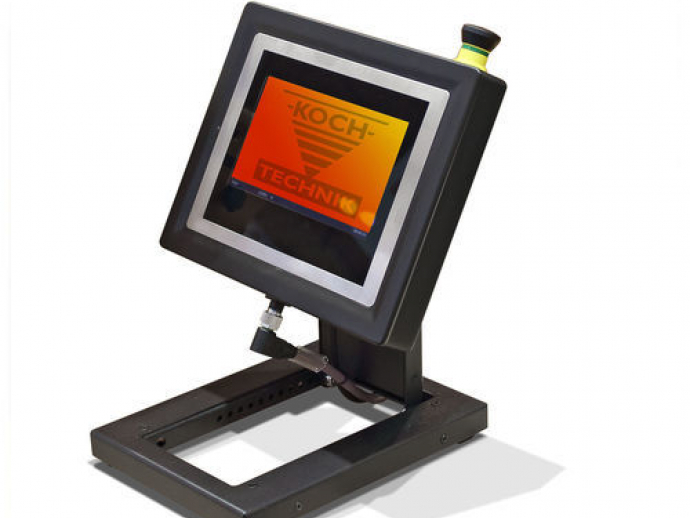

The MCGT is an easy to use control unit with 7" color touch display. After entering the weighing hopper size and the recipe, the dosing runs automatically from the first cycle on, without any necessary calibration. You can query, change and save all process data via the touch screen.

With the OPC-UA communication standard, the uncomplicated and complete integration of the devices into the company-specific production processes is now also possible with the GRAVIKOS.

Advantages and features:
• 7" color touch display with simple user interface
• Clear input and display of process parameters
• Alarm display in plain text
• Password protection
• Statistic functions with operating hours counter and consumption counter
• Language switching
• History recording with alarms, parameter changes and login/logoff of users
• USB and Ethernet interface for data output and coupling with higher-level systems (optional OPC-UA or ModBus-TCP)
• Scale calibration before each dosing cycle
• Gravimetric acquisition and correction of dosing values
• Separate tolerance setting for each individual component

Parameter Name	Parameter Value
Function	monitoring for dosing
Type/technology	digital
Product applications	industrial
Other characteristics	automatic
