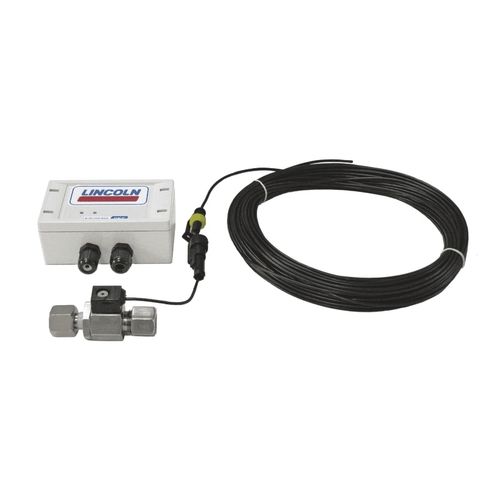

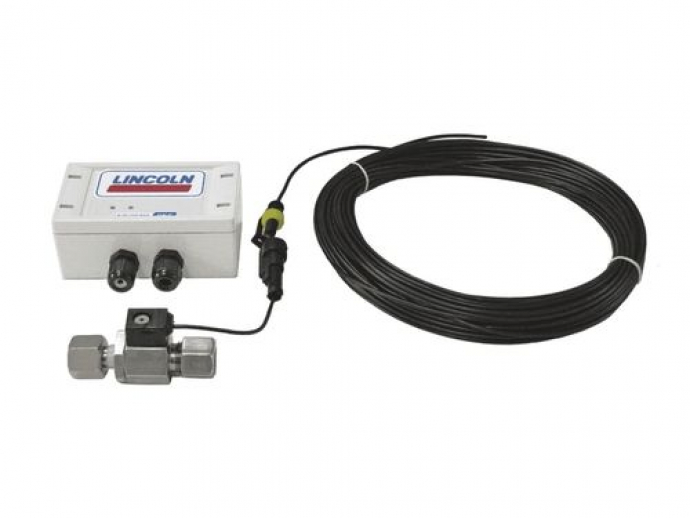

The hose connection control (HCC) is intended to monitor electrically conductive, high-pressure lubrication hoses for line breakage. If there is a fault in the main line or feed lines, the unit alerts the machine operator immediately. Operation of the HCC is not affected by line lengths, ambient temperature, pressure differential or pressure losses.

Utilizing non-conductive lubricants or hydraulic fluids, this monitoring system has an operating pressure of up to 300 bar (4 350 psi) and can be used in temperatures ranging from –40 to +70 °C (–40 to +158 °F).

Features and benefits

Immediately detects hose ruptures
Expandable at any time
Easy retrofit in existing lubrication systems
Monitors difficult-to-access hoses to lubrication points
Common LED signal of all connected hoses on the display
applications

Construction and mining machines; cranes
Wood-handling machines
Forklifts, reach stackers and machines with movable units or accessories
Agriculture

Parameter Name	Parameter Value
Function	monitoring
Product applications	for hose connection
