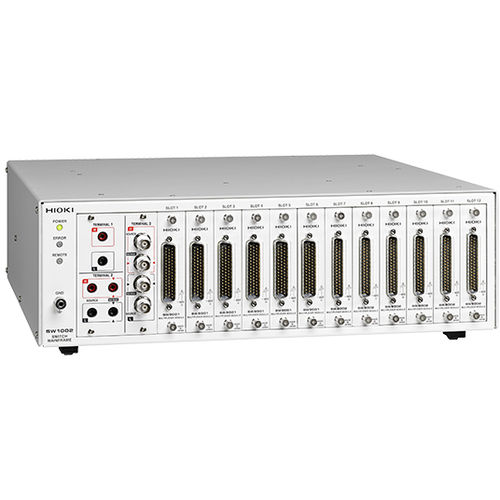

SWITCH MAINFRAME SW1001
Packed with Features to Assure Accuracy in Multi-channel Battery Testing

Overview

The SW1001 is a switch mainframe for housing up to 3 units of SW9001 or SW9002 Multiplexer Module to deliver quick, multi-channel battery testing. Connect up to 2 battery testing instruments to test OCV measurement, internal resistance measurement, and external potential measurement of battery cells.

Key Features
• - Switch between voltmeter and battery tester while testing
• - SW1001: max. 66 channels (2-wire) to max. 18 channels (4-terminal pair)
• - Circuit-design-friendly for impedance measurements that minimize errors between channels (Effect: 0.01% f.s.*)
- * For BT4560 100 mΩ range, R measurements, and a measurement frequency of 1 kHz
• - For OCV measurement, internal resistance measurement, and external potential measurement of battery cells
• - Measure battery modules up to 60 V DC

Multi-channel Battery Testing.Packed with Features to Ensure Accuracy

Combine the SW1001 with a battery testing instrument to measure a battery cell's OCV (open circuit voltage), internal resistance, reaction resistance at low frequency, Cole-Cole plot, and external potential on multiple channels.

Connect Up to Two Measuring Instruments with Different Functions

Switch between two types of measuring instruments to perform a variety of measurements.

Battery Measurement Supported by Exclusive PC Application

Use the free, downloadable PC application to perform various measurements easily.

Parameter Name	Parameter Value
Type	module
Options	multi-channel
