About

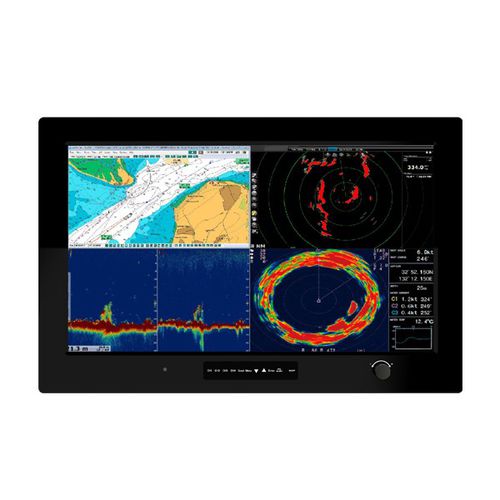

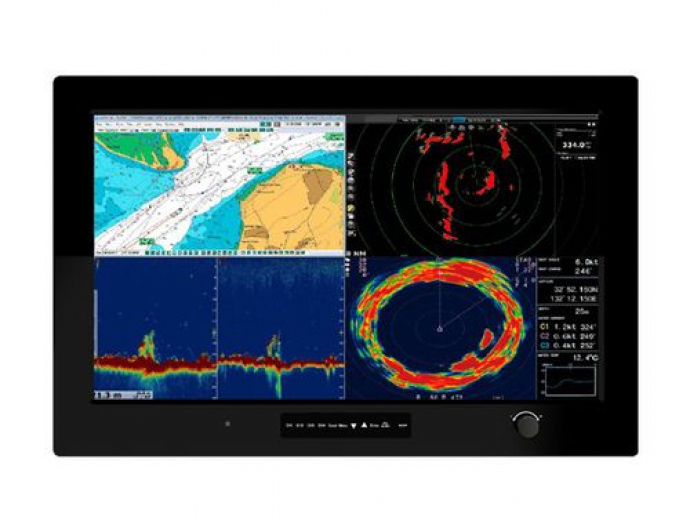

Arista MVD-1824BP combines four video inputs together into a single split screen quad view on its integrated 24' Panel Mount FHD Quad View Multi Viewer industrial displays. All video inputs are synchronized accurately, video channels are displayed simultaneously in real time for smooth and sharp pictures without any glitch occurred. With integrated USB KVM functionality, customers can easily control any of the sources from one single set of keyboard and mouse.
The rugged design with tempered glass and NEMA 4/4X makes MVD-1824 the perfect solution for marine bridge, control room work station, air aviation, industrial automation and other applications.
Panel mount 24" 1920 x 1080 FHD TFT display
Panel mount, front bezel meets NEMA 4/4X requirements
Black aluminum or stainless steel bezel. Tempered glass protection or resistive touch option available
Four mix-signal channels of video input
Accepts digital DVI, HDMI and analog VGA, CVBS and YPbPr video signals
HDMI output display port for clone display. Audio input jack for each channel
Integrated USB KVM
Audio output jack
RS-232 port for Control Console or Control Software interface
IR receiver for IR Remote Control
Quad View, Picture in Picture, Picture on Picture
Brightness control knob
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
module
|
| Options |
|
