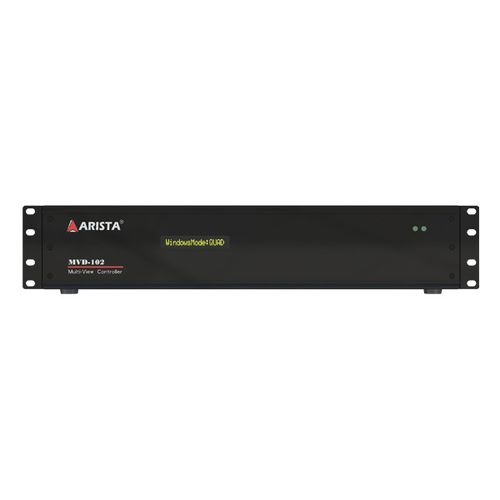

Arista MVD-102 with mix-input signal design provides our customers unique values. Customers can choose their source signal from DVI, HDMI, VGA, CVBS or YPbPr from each channel. The MVD-102 will combine four video inputs together into a single split screen quad view, or customers can view it in Full screen, Picture in Picture (PIP) or Picture over Picture (POP).

All video inputs are synchronized accurately, video channels are displayed simultaneously in real time for smooth and sharp pictures without any glitch occurred. With integrated USB KVM functionality, customers can easily control any of the sources from one single set of keyboard and mouse.


2U 19" Rack Mount form factor
Four mix-signal channels of video input
Accepts digital DVI, HDMI and analog VGA, CVBS and YPbPr video signals
HDMI output display port for external LCD display or projector
Audio input jack for each channel
Integrated USB KVM
Audio output jack for external speakers.
RS-232 port for Control Console or Control Software interface
IR receiver for IR Remote Control
Quad View, Picture in Picture, Picture on Picture

Parameter Name	Parameter Value
Type	module
Options	analog video digital USB
