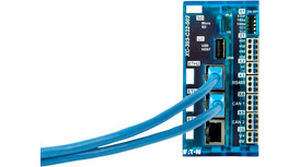

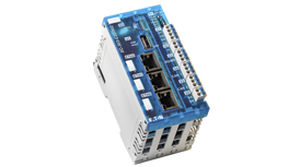

The XC300 is a powerful and flexible modular PLC that enables machine builders and system integrators to implement lean and modern automation concepts. The three variants come with high processor performance, built-in I/Os and integrated RS485, CAN and independent Ethernet interfaces. In addition, the VISU-WEB and OPC-UA servers turn each device into a communication node for the implementation of system concepts based on Industry 4.0. The XC-303 devices can also be expanded with the components of the XN300 I/O system to create solutions with a high connection density even where space is limited.

• ARM CORTEX A7 Dual Core @960 MHz processor
• Integrated CAN and Ethernet interfaces
• Visu WEB (HTML5) and OPC-UA server
• Plug-in connections
• Expandable via the XN300 I/O system
The three XC300 device variants come with up to three independent Ethernet interfaces for operation in different networks. In addition, the XC300 comes with one RS485 and two CAN interfaces as well as four I/O channels with independent power supply, making it suitable for use as a universal control and communication unit.

Parameter Name	Parameter Value
Type	compact
Network	CAN bus RS485 Ethernet
Other characteristics	modular
