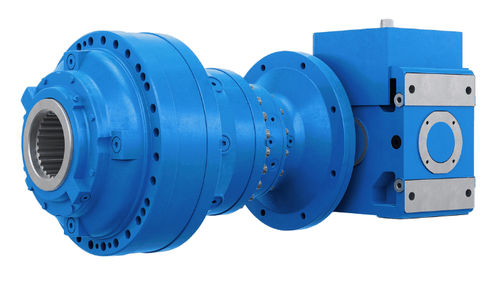

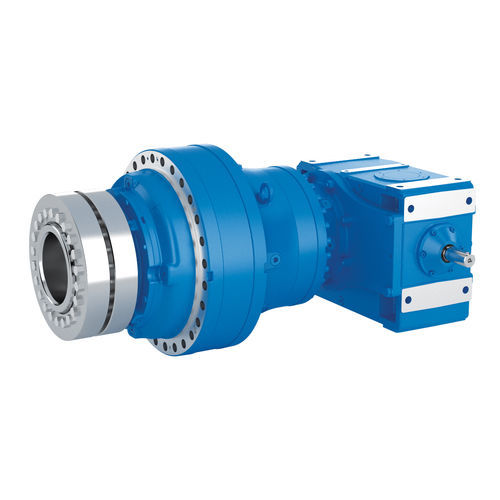

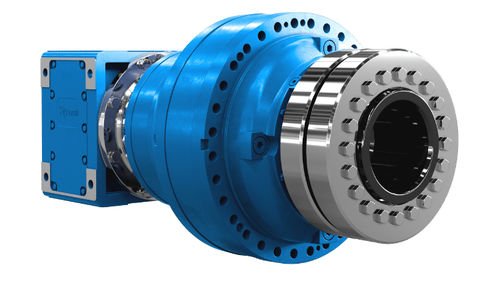

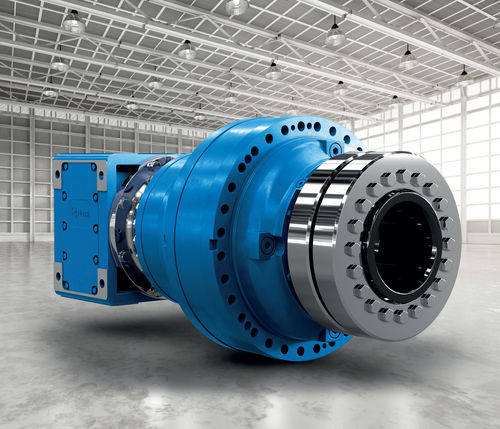

Modular gearboxes for customer tailored solutions where are required the highest torques, peak bearing capacity, high transmission ratio, high efficiency and lifetime.

A cost-effective and reliable solution for “heavy duty” environment.

FEATURES

2, 3, 4 or 5 and 6 reduction stages for both coaxial and right angle units
Modular design, with multi-optional executions
Suitable to be equipped with NEMA, hydraulic & IEC motors
External gear pair made of casehardened and hardened steel; internal gear made from nitride steel
Cylindrical spur gear with ground profile and flank modification
GLEASON spiral bevel gear pairs with ground profile
Very compact size and reduced mass of gearbox
Wide range of accessories and non-standard designs
Lower backlash, enhanced stiffness and heavy duty bearing
Improved lubrication system
Wide range of hydraulic brakes

BENEFITS

Easy and functional flange, foot, or shaft-mounting design
High torque transmitted
Extended range of transmission ratios and output speeds available

Parameter Name	Parameter Value
Type	planetary spiral bevel
Shaft orientation	coaxial right angle
Torque (Nm)	1000 - 2000 2000 - 5000
Number of stages	multi-stage
Performance	high-efficiency high-precision high-torque low-backlash
Applications	for industrial applications for construction equipment for the chemical industry for heavy-duty applications for mining equipment for marine applications for food industry machinery
Other characteristics	compact modular custom combined
