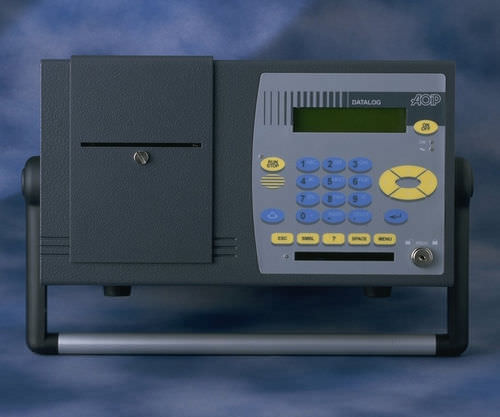

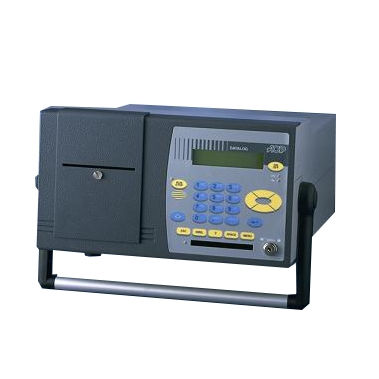

Modular data acquisition system with 2, 9 or 14 input / output boards
DATALOG series of data acquisition systems (2, 9 or 14 input / output boards) are aiming to measure, condition, process, monitor and record analogue and digital signals from all common types of physical sensors.
• DC and AC voltage, current, resistance, strain gauges
• Temperature: Thermocouples, resistive probes
• Dry contacts
• Communication: Modbus RS485, RS 233

DATALOG series of data acquisition systems are aiming to measure, condition, process, monitor and record analogue and digital signals from all common types of physical sensors. 3 different models are available with 2 (DATALOG 20), 9 (DATALOG 90) or 14 (DATALOG 140) input / output boards.
The system can be supplied in various configurations with a choice of input and ouput boards as well as options such as built-in display and printer. DATALOG systems perform measurement, monitoring and recording of analogue and digital signals coming from sensors of physical or electrical values. These signals can be:
• DC and AC voltage: 0-100 V
• Current: 0-20 and 4-20 mA with external shunts
• Thermocouples: Type K/T/J/N/E/R/S/B… with or without cold junction compensation
• Resistance: 0-300 kΩ
• RTD: Temperature sensors (Pt100 / 500 / 1000…)
• Strain gauges
• Dry contacts

DATALOG is equipped with RS 232 or RS 485 interface, ASCII protocol and Modbus RTU (for communication by modem or radio, on request). Combined to VISULOG data management software, it makes an advanced real time supervision system.
4 thresholds can be programmed per channel.

Parameter Name	Parameter Value
Measured physical value	temperature, voltage
Mounting	benchtop
Options and accessories	modular resistance RTD
