About

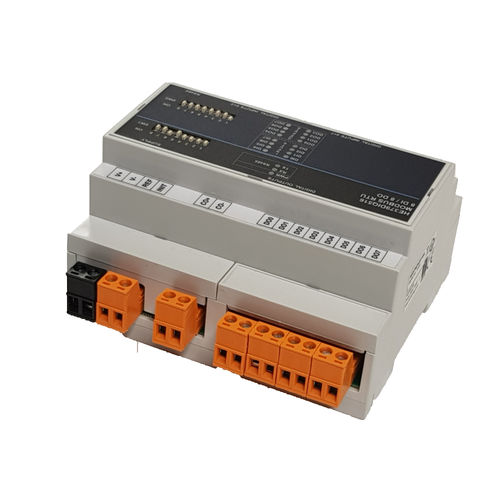

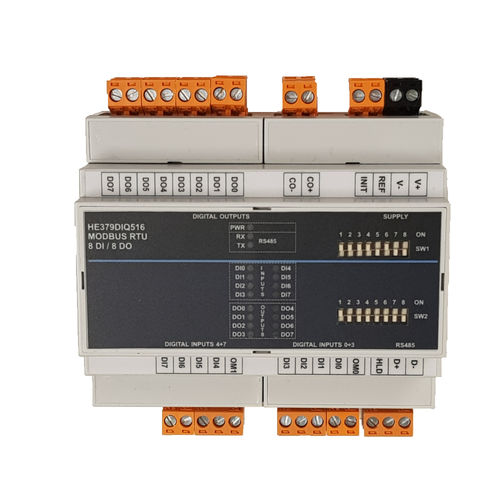

SmartMod+ expandable I/O supporting Modbus RTU communication protocols.
Connects via RS-485 Modbus/RTU to any X-Series OCS
Dip-switches allow for easier configuration
DIN rail mountable
Optical Isolation
Response time suitable for most analogue applications
A Selection of SmartMod+ Modbus/RTU modules are available to choose
from including:
DC In, DC Out
Analogue In, Analogue Out
Relay
RTD
Thermocouple
SmartMod+ I/O is available to expand your OCS system and now supports the following communication protocols: Modbus TCP/IP, CANopen and Modbus RTU. SmartMod+ can cost effectively provide additional points of I/O to any solution and is a great choice for expanding X-Series OCS when one or more digital or analogue I/O are required. SmartMod+ I/O are so compact, they will fit in the smallest of spaces. The SmartMod+ range of remote I/O modules represent innovative solutions capable of satisfying the requirements of small to medium size automation systems, ideal for maximum performance and process reliability, enabling communication between multiple devices connected to the same network.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Port |
RS-485
|
| Other characteristics |
compact
|
