About
- 19”, 1U rack type compact design
- 48 pcs Channels Led Technology
- Internal Event Memory
- Standard Communication and Event Recording Feature
- Reliable Performance Under Electromagnetic Interference
- Working under Different Voltage Levels. (24/48and 110/220 Vdc)
- Isolated RS485 Port and ModbusRTU Protocol Support
- High-quality and long life power supply with protection for over temperature, short circuit, overcurrent/overvoltage

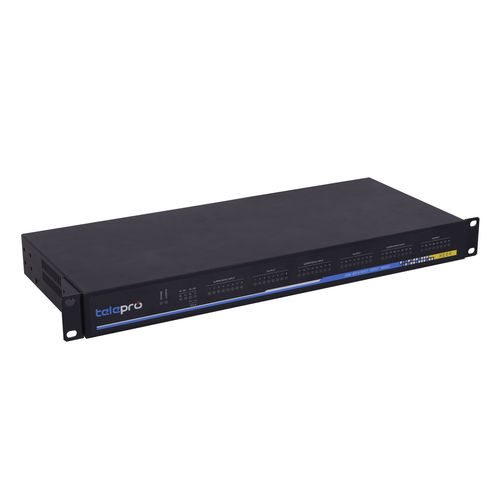

The TELEPRO-HEIM-48Input Module is a flexible, functional and reliable solution for protection and control automation systems.
Combining high-quality, compact and original design with low cost, our product is a unique design with standard communication and event recording option.
Each of the 48 inputs is insulated. The opto-coupler is protected by harmonic suppressors and noise filtering software. It can be safely used in high electromagnetic noise environments, which are constantly encountered in the operating environment of the device.
It has 1 ms resolution event recording and 2,000 event memories.
For electromagnetic noisy environments, the response and release times can be set between 3 and 250 ms.
RS485 communication port supports Modbus RTU protocol and can be easily integrated with SCADA systems.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Bus |
Modbus RTU, RS485
|
| Number of inputs/outputs |
multi-channel
|
| Mounting |
19" rack
|
| Size |
1U
|
| Other characteristics |
compact
|
