Overview

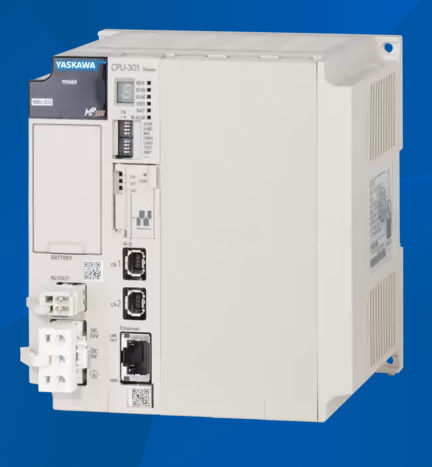

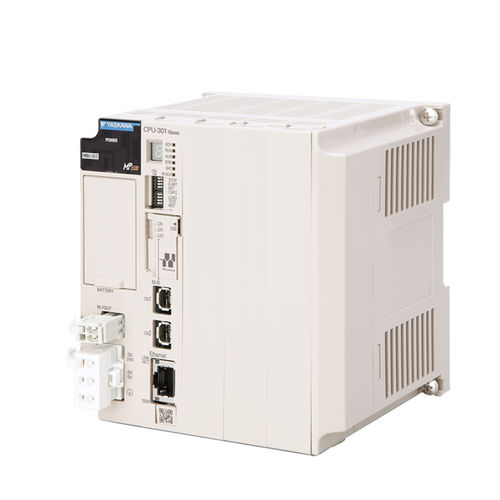

MP3300iec is a compact machine controller with 4, 8 or 20 axes of synchronized control.
IEC Programming Environment and Controller-Centric Commissioning using MECHATROLINK-III motion network

One software platform

MotionWorks IEC, allows efficient programming and handling of applications within a standard IEC 61131-3 environment
Advanced camming and gearing functions
The MECHATROLINK-III open Ethernet based motion network (100 Mbps) enables machine configuration from a single location with one software tool. Using self-tuning abilities of a servo system commissioning time is greatly reduced.
Open standards EtherNet/IP and Modbus TCP to connect to many HMI and PLC in the market
The controller can operate local amplifier outputs. This reduces panel cost and space requirements when just a couple of outputs are necessary.
Libraries enable importation of previously developed logic
A Multitude of Options
Choose from ten option cards offered for the expansion slot to accommodate most machine requirements.

Parameter Name	Parameter Value
Input	Modbus
Mounting	panel-mount
