Overview
Features:

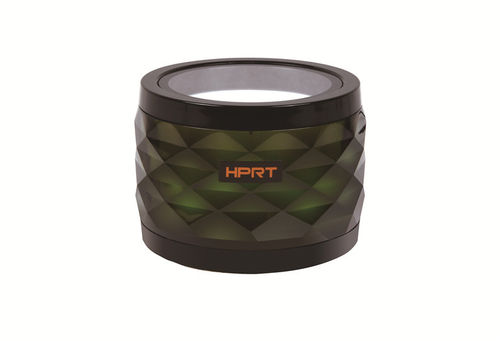

1. Diamond shape with colorful gradient lights.
2. Start the identification mode after automatically sensing.
3. Oversized read window to reading various sizes of 1D&2D barcodes.
4. Diffuse fill light to help read the 1D&2D barcodes in different brightness level.
Specification
Item
Fixed Barcode Scanner
Model
HP-1207WA
Image Sensor
CMOS
Pixel
640*480
Illumination
White-light LED
Barcode Scanning Type
2D; PDF417, QR Code, Data Mairx, HanXin, Maxicode,Postal Codes etc 1D: Code 128 UCC/EAN128, AIM128EAN8, EAN13, ISBN/ISSN, UPC-E,UPC-A,Interdeaved2of 5,ITF-6, ITF-4, Matrix 2 of5,Industrial 25, Standard 25, Code39,Codabar, Code 93 Code 11 Plessey MSI-Plessey RSS14.RSS-Limited RSS-Expand etc.
Resolution Scanning
≧5mil
Classical DOF Scanning
13mil ENA:0mm-55mm
20mil QR: 0mm-50mm
Mobile payment code（5 inch screen）：0mm-120mm
Barcode Sensibility
Pitch：±60°
Tilt：360
Skew：±60°
FOV
Horizontal: 67°,
vertical:52°
Relative Contrast Value
≧20%
Dimension(mm)
64（H)*85(Φ)
Weight
188g
Housing Materials
Promoting Mode
Buzzer, LED Indicator
Interface
USB ,USB Virtual Serial Port
Trigger Method
Induction reading
Continuous reading
Operating Voltage
5VDC±10%
Operating Current
Standby: 240mA;
Work: 290mA
Operating Temperature
‘-20℃+50℃
Storage Temperature
’-40℃+70℃
Relative Humidity
5%~95% (No Condensation)
ESD
±8kV Air Discharge,
±4 kV Direct Discharge
ISO
CE FCC ROHS
Test Condition
Environment temperature=23℃
Environment illumination=3O0LuX
DOF scanning depends on the resolution,
contrast and illumination of barcode
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Portability |
mobile
|
| Type |
1D
|
