Product Description

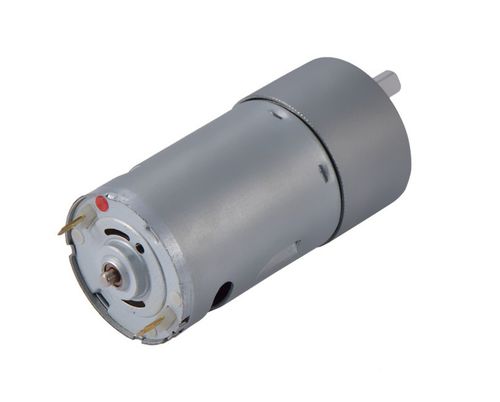

Products name 24V Miniature DC geared motor
Dimension Φ37*37mm
Noise ≤65db
Iput voltage 9-24V DC
Maximum output power 10W
Maximum efficiency 70%
Speed at maximum efficiency 810 rpm
Torque at maximum efficiency 11 mN.m
Electrical connection S1
Operation temperature B
Protection grade IPOO
Use Automatic receiving machine
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Motor type |
DC
|
| Type |
cylindrical
|
| Shaft orientation |
parallel-shaft
|
| Shaft configuration |
solid-shaft
|
| Power (W) |
10 - 50
|
| Voltage (V) |
24 - 24
|
| Torque (Nm) |
0 - 0.1
|
| Product applications |
for automation
|
| Other characteristics |
miniature
|
