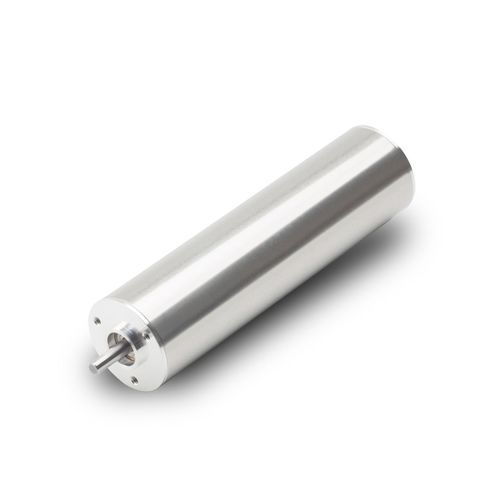

The 22ECA60 autoclavable brushless DC slotless motor features a 22mm diameter and has been optimized specifically for small and medium bone drill and saw applications; this mini brushless slotless motor can also sustain 200+ cycles in autoclavable environments, making it well-suited for applications with sterilization requirements. Motor speed and torque characteristics make the 22ECA60 an ideal solution for powered surgical hand tools used in foot, ankle, and elbow surgeries. It is also suitable for dental implantology, thanks to its excellent speed capabilities.

Product Highlights
- Withstands 200+ autoclave cycles
- Optimized for use in surgical powered devices
- >90% efficiency for battery-operated handpieces
- Sensored and sensorless versions available
- Lightweight and low vibration for increased surgeon tactile feel

Customization Available
- Custom shafts - flats, knurling, diameter, length
- Coil modifications - resistance and inductance
- Mechanical integration upon request (housing, front & rear flange, shaft)
- Without hall sensors

Applications
- Surgical Power Tools
- Surgical Saws
- Surgical Drills
- Surgical Robotics
- Powered Plastic Surgery Devices
- Laparoscopy Tools
- Dental Hand Tools

Parameter Name	Parameter Value
AC/DC	DC
Voltage (V)	24 - 24
Configuration	stainless steel slotless mini autoclavable
Number of poles	2-pole
Applications	for medical equipment for drills
Power (W)	180 - 180
Intensity (A)	7.8 - 7.8
Torque (Nm)	0.051 - 0.051
Rotational speed (rpm)	0 - 60000
Diameter (mm)	22 - 22
Operating temperature (°C)	-30 - 135
