» Single and double-acting
» In compliance with ISO 6432
» Stainless steel rod and barrel
» Anodized aluminium end-blocks
» Cushioning types: mechanical with bumper, pneumatic auto-cushioning, adjustable pneumatic cushioning

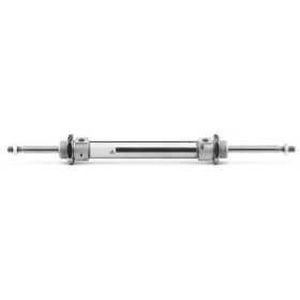

Series 16, 23, 24 and 25 mini-cylinders are designed according to ISO 6432.
It is possible to choose from three different types of cushioning: mechanical (standard bumper on Series 16 and 24), adjustable pneumatic cushioning (Series 25) and pneumatic auto-cushioning (Series 23). This last version, thanks to a patented system, automatically adjusts the cushioning in order to provide optimal deceleration during the entire cushioning
phase. The cylinder enjoys smooth, jolt-free movement, reducing vibrations and noise, while also guaranteeing high reliability and constant performance over time.

The adopted technical solutions and the choice of materials have provided the basis for a complete range of versatile and very reliable mini-cylinders. They are suitable to be used in a multitude of industrial applications, especially where operating conditions undergo changes over time like for example wear of machine components. Various mounting accessories are available to fix the cylinders in different ways.

Parameter Name	Parameter Value
Type	pneumatic
Technology	with through rod
Configuration	double-acting single-acting
Material	stainless steel, anodized aluminum
Norms	ISO 6432
Applications	industrial
Other characteristics	standard precision with adjustable cushions high-speed mini rod lock
Stroke (mm)	10 - 1000
Pressure	Min.: 1 bar (14.5 psi)Max.: 10 bar (145 psi)
Speed (mm/s)	10 - 1000
Ambient temperature	Min.: 0 °C (32 °F)Max.: 80 °C (176 °F)
