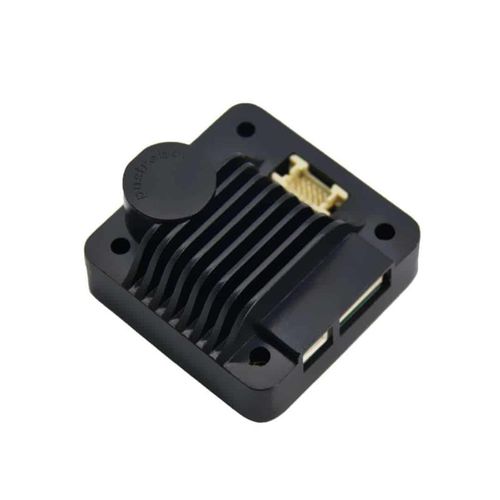

PMC007BxSxP is a kind of miniature integrated stepper motor microstepping controller, which can be directly installed in the rear of 42/57/86 series stepper motor. The series controller provides a variety of models which can be chosen based on bus control of modbus-RTU and different current value. It is easy to achieve industrial control network of as many as 120 nodes, which can achieve closed-loop control based on encoder according to the requirements of user. PMC007BxSxP adopts industrial standard modbus-RTU control protocol, which not only greatly simplifies the complexity of the upper layer control system, but also maximally reserves flexibility of control, and is suitable for all kinds of high precision, wide range of industry using.

Host -
PC,PLC,MCU

Support motor -
2-phase stepper motor

The development environment -
VC C# Labviwe VB Linux Python

The power supply voltage -
DC12-48V

Output Current -
DC 0.4-6A

Microstepping -
0/256 adjustable

Temperature -
-20℃-80℃

Maximum pulse frequency -
200K

Durability -
Over 20,000 hours

Parameter Name	Parameter Value
AC/DC	DC two-phase
Motor type	microstepping
Other characteristics	integrated closed-loop
Input/output	digital input, analog input, digital output
Input voltage	Min.: 0 VMax.: 5 V
Current (A)	0.4 - 6
