Microstepping Stepper Motor Driver - 4.0 Arms/5.6A peak (75VDC)

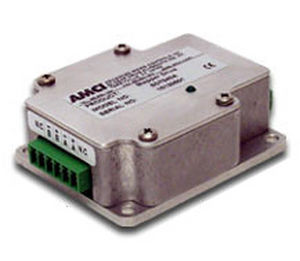

The AMCI SD7540A is a powerful stepper motor driver in a low cost, compact package. Externally powered from a 24 – 75VDC power supply, this drive pack can operate up to NEMA size 34 motors.

With up to 4 Arms(5.6 A peak) of half step and microstepping capabilities, this drive pack provides higher speed and torque than any other drive in its class. Yet, it is easy to connect to any differential or transistor pulse and direction motion controller signal.
The SD7540A stepper motor driver can also be easily programmed using AMCI’s SPI interface software and CSMD-5 cable. This Windows-based software allows the programmer quick access to fine-tune the application performance.

Parameter Name	Parameter Value
Motor type	microstepping
Other characteristics	programmable
