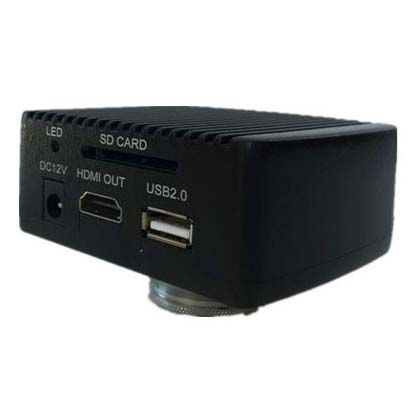

Color Video Camera HDMI 1920 x 1080 Full HD with Mouse control and SD Card
Order number: 301033:678.28
The Color Video Camera HDMI is a high resoluted microscope camera (1080 Pixel, Full HD) with a brilliant color reproduction and fast frame rates. The camera can be connected directly to a monitor with a HDMI cable. There is no need to have a seperate computer to connect the camera.
Applications
Typical areas of applications for the Color Video Camera HDMI are the microscopy, in particular the use as high-quality documentation and surveillance camera. Other applications are process monitoring of machinery and equipment industry, but also the use as a live camera for online live video displaying on large screens or using at beamers in the area of events.
Technical Data
Sensor: 1920*1080 Pixel, FULL HD, 1/2.86”
Lens mounting: c-mount
Pixel size: 2.75*2.75 µm
Dimensions (WxDxH): 85x75x45; app. 260g
Frame rate: 1920 * 1080 Pixel 60 fps via HDMI
Resolution images: 2592 * 1944 Pixel
Digital Magnification: 10x Digital Zoom
OSD Menu: Settings via a wireless mouse
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
for microscopes
|
| Function |
surveillance
|
| Interface |
HDMI
|
| Resolution level |
full HD
|
