About

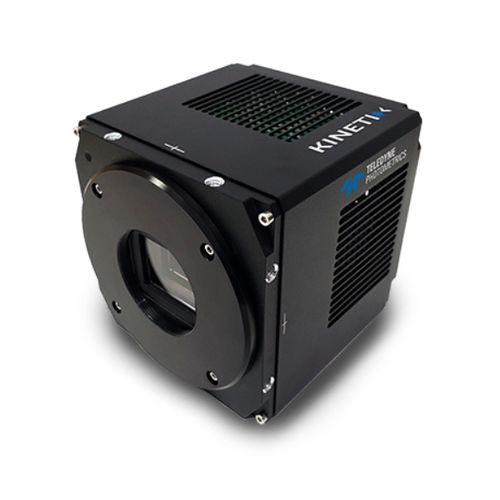

The back-illuminated Kinetix Scientific CMOS (sCMOS) camera delivers the fastest speed and the largest field of view with the most balanced pixel size and near perfect 95% quantum efficiency.
• 498 Frames per Second
• 29.4 mm Diagonal Field of View
• 0.7 e- Read Noise
• 95% Quantum Efficiency
• 6.5 µm x 6.5 µm Pixel Area
Key Features
Taking advantage of an 8-bit readout mode, the Kinetix sCMOS delivers a tremendous 498 frames per second (fps), full frame with a 29.4 mm diagonal field of view.
The optimized line time allows the speed to significantly outperform typical sCMOS devices, delivering over 5000 megapixels/second – over a 10-fold improvement.
Large Field Of View
The 29.4 mm square sensor of the Kinetix is designed to increase throughput, maximize the amount of data captured in a single frame and take full advantage of new, larger field of view microscopes.
At 29.4 mm diagonal, the Kinetix sensor has a 2.4x larger imaging area than typical sCMOS cameras allowing the user to significantly speed up data acquisition.
The Kinetix back-illuminated sCMOS camera achieves a near-perfect 95% quantum efficiency.
By bringing the light in from the back of the sensor, photons land directly onto the light receiving surface, maximizing light collecting capability.
The Kinetix combines 95% quantum efficiency with a low 0.7 e- read noise to deliver the most sensitive sCMOS camera at 498 frames per second.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
for microscopes
|
| Technology |
digital
|
| Function |
scientific vision
|
| Spectrum |
near-infrared, visible, UV
|
| Sensor |
sCMOS
|
| Interface |
PCI Express
|
| Other characteristics |
|
