About

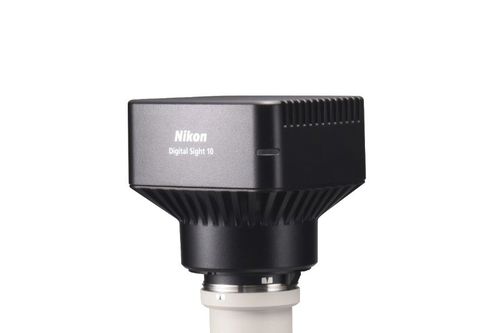

The Digital Sight 10 utilises a full frame Nikon FX 23.9 megapixel CMOS sensor to provide outstanding image quality in both colour and monochrome modes, without loss of quality or resolution.
Full Frame Nikon FX Format CMOS Sensor
Excellent colour and monochrome image reproduction is achieved with a maximum resolution of 6000 x 3984 pixels (23.9M) at 9 fps and 2000×1328 pixels (2.7M) at 55 fps
Compact Camera Body
The compact camera body has a volume 30% lower than the previous design.
High Resolution Image Capture
Outstanding 6K ultra-high image quality is achieved, combined with easy acquisition of sample structures. Microscope images up to 6000×3984 pixels (23.9M) are captured, ideal for obtaining more accurate data when analysing extremely fine structures.
High Sensitivity, Low Noise
High sensitivity equivalent to ISO 12800 is possible. ISO 200 in colour mode and ISO 800 in monochrome mode, together with image acquisition into the near infrared region, is all achieved in one camera.
Very Fast Live Image
Outstanding frame rate permits the capture of many individual steps of a moving sample, along with extremely clear fine-focusing, presenting an excellent live image. Maximum resolution is 6000×3984 pixels (23.9M) at 9 fps, 2000×1328 pixels (2.7M) at 55 fps.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
for microscopes
|
| Technology |
digital
|
| Spectrum |
full-color, monochrome
|
| Sensor |
CMOS
|
| Interface |
USB
|
| Resolution level |
6K
|
| Other characteristics |
|
