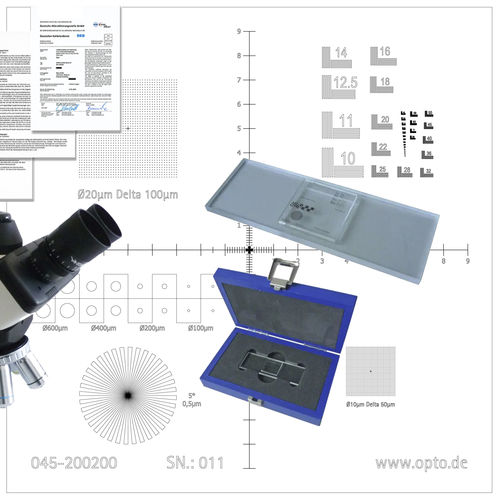

Calibration Target Micro V1
Optical calibration and resolution testing are critical metrics in understanding and optimizing any optical system.
Calibration Target Micro V1 is unique in that it combines very useful resolution data, combined with ultra-high definition micro features, together enabling efficient and accurate optimization of any optical setup.
•Ultra-high definition micro features, compatible to the most demanding optical calibration requirements
•Four unique quadrants combining resolution targets to measurement scales

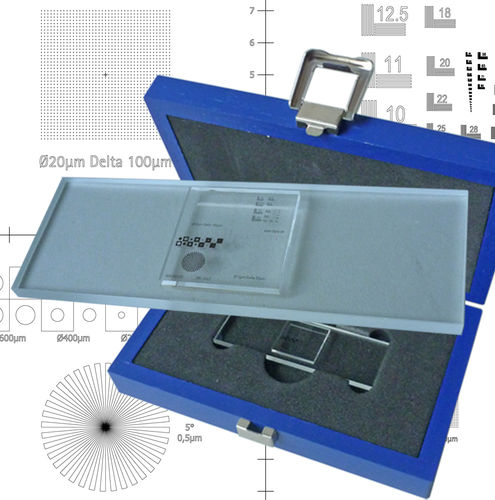

•Supplied in a dedicated padded storage case
•Optional with DKD-certificate. With DKD-certificate the product number is 045-200200-DKD

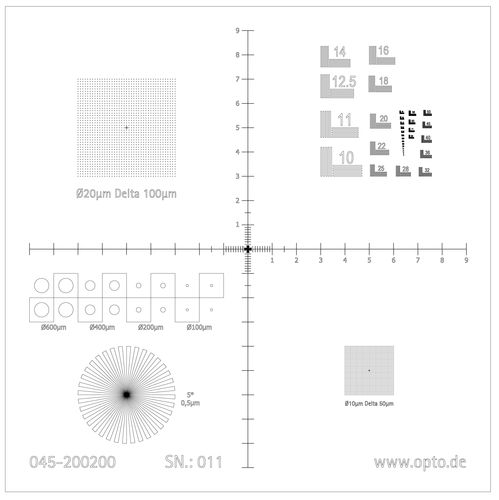

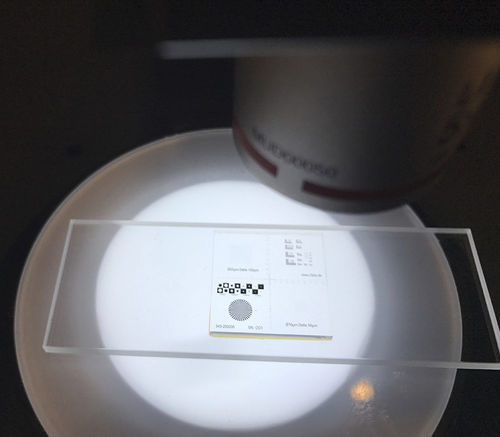

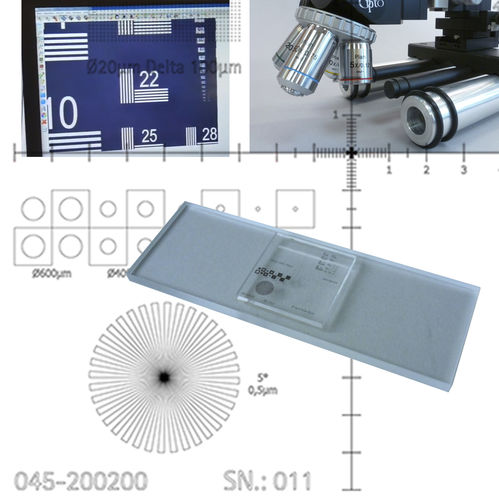

Calibration Target Micro V1 contains defined structures in different shapes and sizes for easy system calibration and distortion detection.

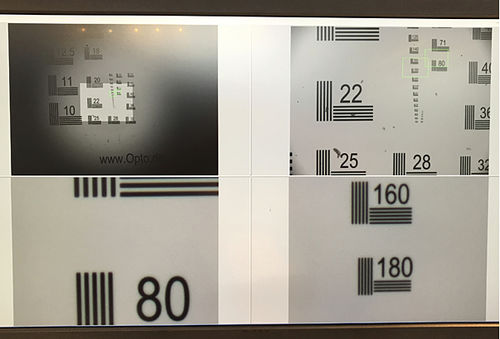

1.10 lp/mm to 1000 lp/mm
2.Ø20 μm dot matrix 40x40 dots,100 μm grid
3.Contrast and Siemens structure
4.Ø10 μm dot matrix 40x40 dots, 50 μm grid
5.Scale with steps down to 10 μm

Structure chrome on glass
Minimal structure size 0.5 μm
Maximal structure size 600 μm
Structure shapes various shapes
Scalein x-and y-direction
Dimension 76x 26x 4.5 mm
Weight 17 g

Parameter Name	Parameter Value
Applications	for microscopes for micron-scale measurement
