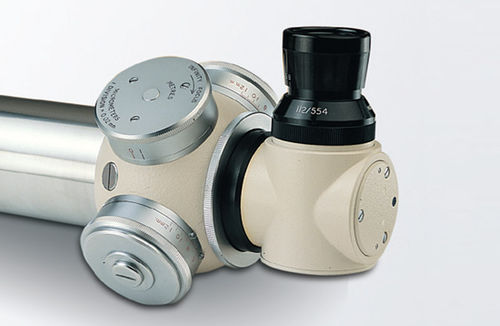

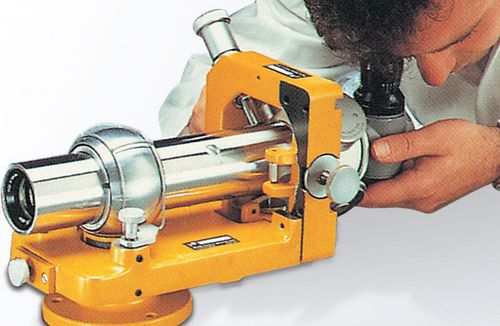

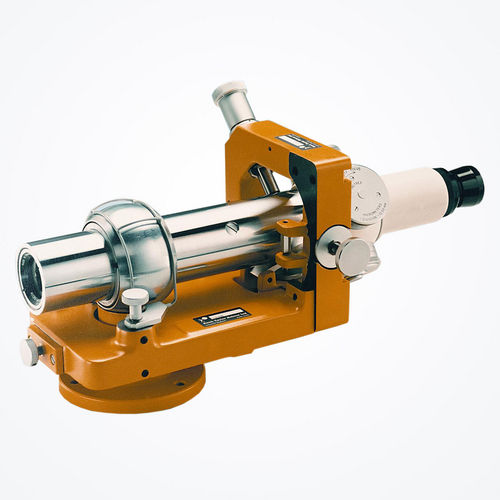

Similar to the micro Alignment Telescope without the X and Y micometers, the alignment telescope allows the user to set true lines of sight by utilising the parallelism and co-axiality of its optical to mechanical axis providing alignment axis of 0.05 mm over 30 metres.

Parameters include alignment, parallelism, squareness, level/flatness and straightness for applications from alignment of propellor shaft bearings to aircraft frame alignment, features include;

•Mechanical to optical concentricity to less than 6 um
•Parallelism of optical line of sight to mechanical axis less than 3 arc secs
•Precision Cylindrical datum for simple fixturing
•Wide range of accessories to assist in alignment and measurement

Parameter Name	Parameter Value
Options	micrometer
