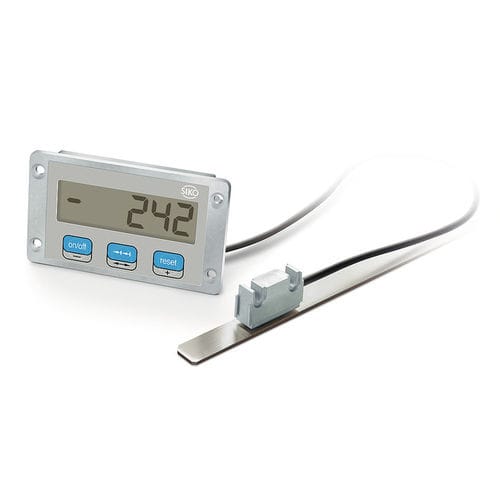

Electronic display MA508/1
Quasi-absolute, mains-independent LCD display, robust metal housing

The MA508/1 magnetic display is the optimized successor of the MA508 magnetic display. Now, the magnetic display can be freely programmed via the integrated keyboard, for example for parameters such as resolution or offset.

The compact dimensions enable simple constructive integration even under confined installation conditions. The metal housing guarantees durability and robustness.

Profile MA508/1:
- Display accuracy max. 0.01 mm
- Repeat accuracy 0.01 mm
- Low-power LCD with integrated sensor
- Supply via integrated battery with up to 10 years of service life
- Freely programmable directly via buttons on the device
Mechanical data
Feature - Technical data - Additional information

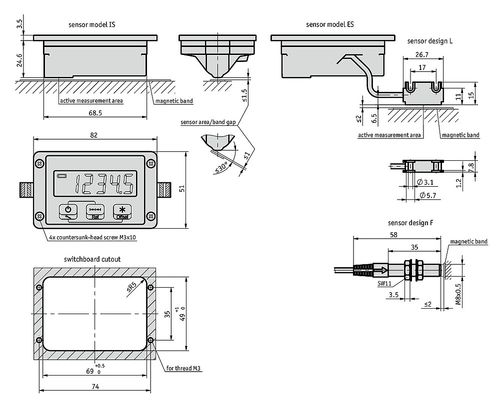

Housing design - installation housing, zinc die-cast housing - panel opening 69*0'1 x 49+
Sensor/band reading distance - 21.5 mm - integrated sensor
- 22 mm - external sensor
Electrical data - -
Feature - Technical data - Additional information
Operating voltage - 3 V DC - internai battery
Battery service life - ~4.5 year(s) with 50 % duty cycle - atTU = 20 =C
Display/display range - LCD, ~ 13 mm high - décimal until 10 pm
- -99999 ... 99999 -
Keys - 3 keys, membrane keyboard -
Battery monitoring - "1.5 V DC - low-batt symbol
System data - -
Feature - Technical data - Additional information
Resolution - 0.01, 0.05, 0.1,1 mm - programmable angle display
- 0.001, 0.01 inch -
System accuracy - ±(0.05 + 0.01 x L) mm, L in m - atTu = 20=C
Repeat accuracy - ±0.01 mm - ±1 digit
Travel speed - 210 nVs -
Ambient conditions - -
Feature - Technical data - Additional information
Ambient température - 0 ... 60 5C -
Storage température - -20 ... 70 *C



PARAMETERS

Parameter Name Parameter Value
Type
LCD
Format
compact
Applications
  • for metrology
  • for linear encoders
Other characteristics
  • electronic
  • programmable
  • panel-mount
