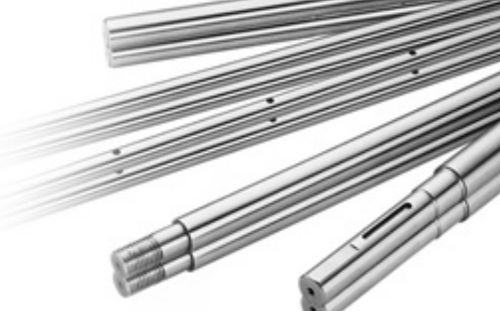

The NB shaft can be used in a wide range of applications as a mechanical component from straight shaft to spindle shaft.

NB’s expertise in machining and heat-treatment turns into manufacturing spindle shaft, roll shaft, and general machinery shaft for rotational motion. NB’s high accuracy technology answers various shaft machining requirements.
Advanced Machining Technology

NB performs a wide variety of highly accurate machining processes to provide custom shafting from relatively simple machining, such as tapping and shaft stepping, to the more demanding highspeed rotating shafts and spindles. NB can also answer the special grinding and bore machining requirements.
Special Requirements

Based on the customer drawings and specifications NB will answer the customer requirements in material (SCM, SKS etc.), heat-treatment, surface treatment, etc.

Excellent Wear Resistance

Most commonly used materials are high-carbon chromium bearing steel (SUJ2) and martensite stainless steel (SUS440C or equivalent). NB’s advanced heat-treatment technology gives these materials an excellent wear resistance by quenching and tempering to achieve a uniform hardened layer in the circumferential and axial directions. The cross-sectional picture below shows the hardened layer-depth of the NB shaft.
Shaft Supporter and Shaft Support Rail

These components ease the shaft installation and help save the design/assembling time.



PARAMETERS

Parameter Name Parameter Value
Material
metal, carbon
Type
  • hollow
  • slide
Product applications
for coils
Other characteristics
  • stainless steel
  • straight
Diameter (mm)
2 - 60
Length (mm)
100 - 4500
