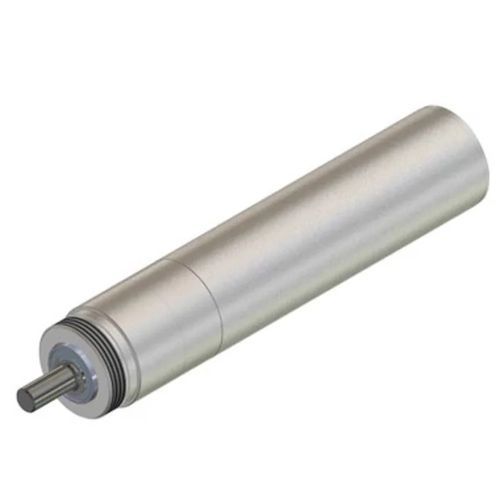

This size 6 brushless DC slotted mini motor is optimized for arthroscopic shaver applications. Motor torque and speed makes this an ideal solution for powered surgical hand tools that are used in minimally invasive surgical procedures to repair joints such as the hip, knee, shoulder. Portescap mini motors for surgical power applications are designed for high reliability in autoclave environments.

Product Highlights
• Designed for autoclave applications requiring up to 1000 autoclave cycles
• Optimized for use in surgical powered devices
• High torque and high speed design optimized to remove soft tissue, hard tissue, or bone
• High speed electric motors allow for shorter surgery cases and cleaner soft tissue cuts
• Lightweight and low vibration for increased surgeon tactile feel
• High efficiency for low temperature operation
• Small size allowing smaller surgical hand tool designs and improved ergonomics
• Withstands high current draw

Applications
• Arthroscopic Shavers
• Powered ENT Debrider
• Surgical Robots

Parameter Name	Parameter Value
Motor type	DC brushless DC
Type	planetary
Shaft orientation	coaxial
Shaft configuration	solid-shaft
Power (W)	50 - 100
Voltage (V)	24 - 24
Torque (Nm)	0 - 0.1
Performance	high-torque high-efficiency high-speed
Product applications	for medical equipment
Other characteristics	miniature
Gear ratio (unit)	6 - 6
Operating temperature (°C)	155 - 155
