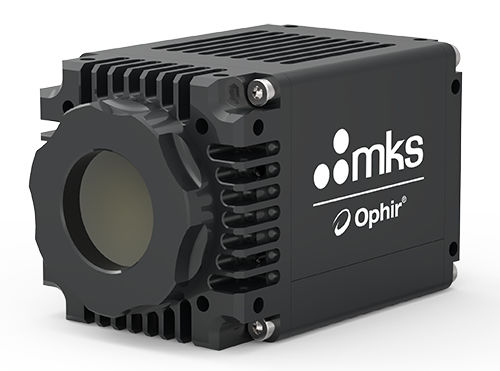

GigE High Resolution InGaAs Camera with BeamGage
Description:
The SP1203 camera accurately captures and analyzes wavelengths from 900nm - 1700nm. It features a high resolution VGA sensor, compact design, power over Ethernet, stabilized sensor cooling with no fan, and automatic NUC file correction. This InGaAs camera-based beam profiling system is ideal for eye-safe military, telecom, and medical laser applications.
640 x 512 active area with a 15μm pixel pitch
NIR performance
Compact industrial design
Power over Ethernet
Automatic NUC file correction
Exclusive Ultracal for ISO conforming accuracy
BeamGage Professional software included
Specification
Wavelengths: 900-1700nm
Beam Sizes: 150μm – 7.4mm
Interface: GigE
Sensor Type: InGaAs
Compatible Light Sources: CW, Pulsed
Active Area: 9.6mm x 7.6mm
Elements: 640 x 512
Effective Pixel Pitch: 15μm
Dynamic Range: 68 dB
Frame Rate at Full Resolution: 60Hz
Compliance: CE, China RoHS
