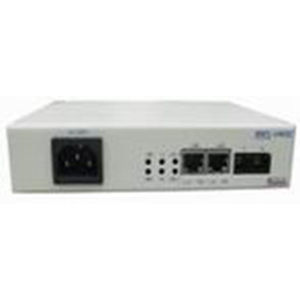

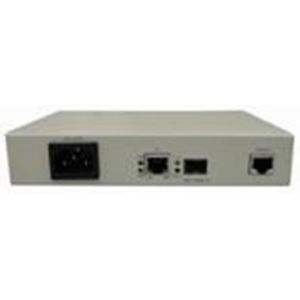

Huahuan Media Converter can be applied in operators’ access filed to interconnect with Metropolitan Area Network, support Ethernet optical port (NNI ports) and Ethernet electrical port (UNI ports).

The device can directly connect with PTN/IPRAN through uplink optical Ethernet port, realizing VLAN, QinQ, QoS, STP, RSTP functions, and supporting 802.3ah OAM management function, LACP, fiber-cutalarm, SNMP in-band network management and Telnet remote login, as well as using console command line (CLI) to configure and query local NE.

Features

-Ethernet interfaces comply with IEEE 802.3/802.3u/802.3ab/802.3z/802.3ah/802.1ad/802.1q/802.1p;
-Standard 10/100/1000 Base-Tx/Fx interfaces, Ethernet ports are switching, support connection with fiber optical modem, Ethernet card, hub, repeaters or switches from other manufactures;
-Supports IEEE 802.1q VLAN and IEEE 802.1ad VLAN;
-Supports LFP (Link Fault Pass-through) function;
-Supports Ethernet port speed limit function, capable of limiting import/export speed;
-Optical port supports ALS (Automatic Laser Shutdown) function;
-Supports Ethernet loopback test;
-Supports remote power failure alarm;
-Supports IEEE 802.3ah OAM function, and supports Active, Passive and Auto operation modes;
-Supports Web Server management (H0FL-11000P/H0FL-11000N);
-Remote monitoring can be realized by connecting to the corresponding card of central office (CO) converter rack H0FL-P (H0FL-P.1101S1/1101S2/11000P/11000N card) or H9MO-LMXE.V2 (FE02 card).

Parameter Name	Parameter Value
Type	media
Bus	Ethernet
Other characteristics	rack
