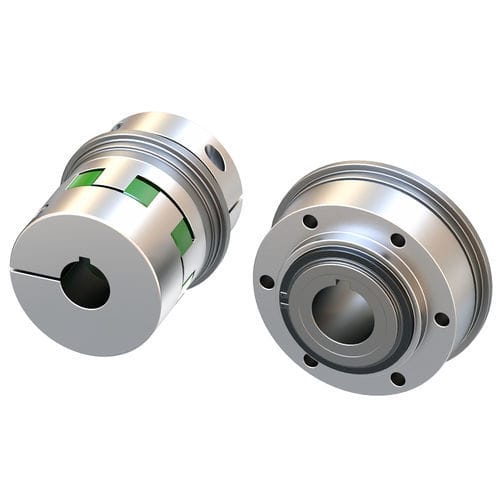

A mechanical torque limiter, installed between the output of a gear reducer and the driven shaft, protects the gear set if an overload happens on the conveyor system. The coupling bores are made specific to the gearbox output shaft and main drive shaft. The elastomer transmits torque without backlash or vibration.

Typical Applications:

Accurate positioning
Controlled acceleration
Controlled deceleration
High inertia start/stop
Inching/jogging

Parameter Name	Parameter Value
Operation	mechanical
Other characteristics	with elastomer couplings
Torque (Nm)	10 - 650
Diameter (mm)	19 - 75
