torque-limiting Multidisc coupling.

For oil bath applications; for dry applications, please, see “BF” model

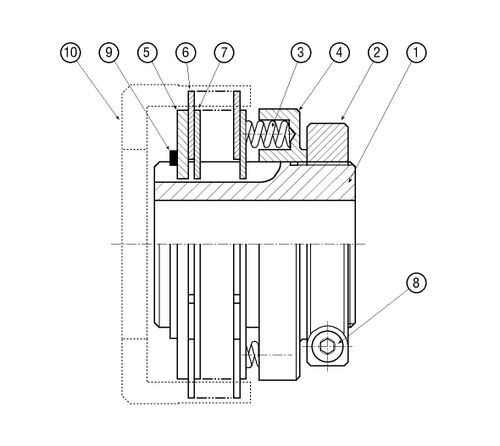

Useful for connection between a shaft and a pulley or crown wheel to be fastened to the housing (10).
The calibration is adjusted by the threaded ring nut (2), which controls a series of springs (3) that compress the discs.

Parameter Name	Parameter Value
Operation	friction, mechanical
Torque (Nm)	2 - 600
Diameter (mm)	15 - 62
