Protect mechanical equipment, or its work, from damage from mechanical overload.

» Torque limiting up to 23,000 Nm.

» Coupling prevents high shock loads.

» Standard brass bushes for extended durability.

» Torque adjustment possible even in assembled condition.

» Acid resistant versions available on request.

» Units finish machined to suit customer applications.

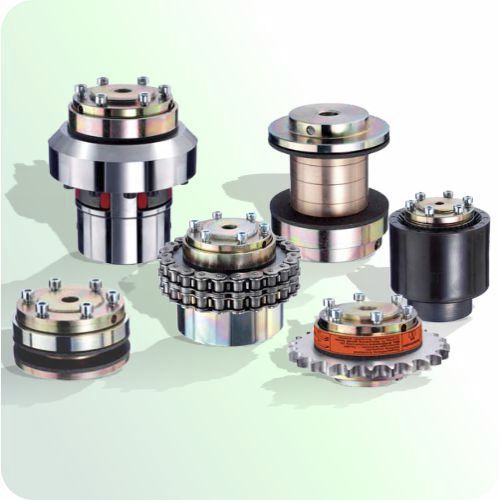

High quality torque limiting couplings, fully-machined components with a special rustproof surface coating. This series of torque limiters are completely enclosed to prevent dirt from contaminating the interior. They allow stepless adjustment of the required slip torque, even when already installed.
These torque limiters have been constructed to allow easy adaptation to a wide variety of operating conditions, not only for frequent slippage at low torque, or low friction and extremely high torque, but also for all intermediate levels of torque, friction and desired service life length.

The jbj Techniques website http://www.jbj.co.uk/Torquelimiters.html for further details and on-line specification catalogue.

Parameter Name	Parameter Value
Operation	mechanical, with sprocket wheel
Other characteristics	safety compact zero-backlash with elastic coupling with elastomer couplings with gear couplings steel stainless steel
Torque (Nm)	0 - 0
