For precise, secure positioning of cameras, light sources or any other optical accessory in any environment, Opto jointed couplers are the ideal solution.

Precision manufactured in Germany from high grade steel and aluminium, jointed couplers provide a durable, yet economical mounting solution that is cleanroom compatible, and thanks to a wide variety of standard connection threads, unlimited in application! These components are resistant to vibration, and offer a dependable compatibility with accessories.

Application & Markets
• Mounting of cameras with 1/4'' thread for e.g. surveillance, code readers or in automations
• Mounting of illumination components in Machine Vision and Microscopy
• Fine positioning of sensors in rough environments such as soldering or outdoor applications

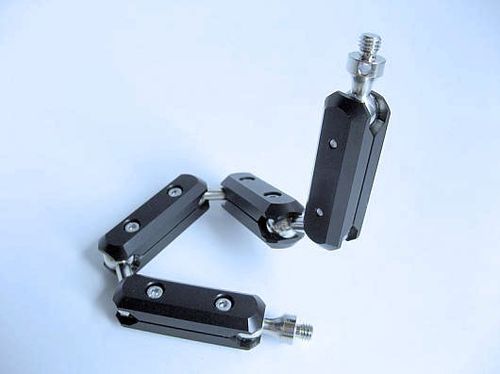

Article: 100-JC3-66, unit 3 links, thread M6-M6, length 191mm, max. load 2.0kg

Variations (min.-max.):
Jointed Couplers: 1-6 links
threads: M6-M6 or M6-1/4''
length: 72mm - 370mm
max. loads: 0.3kg - 5.0kg

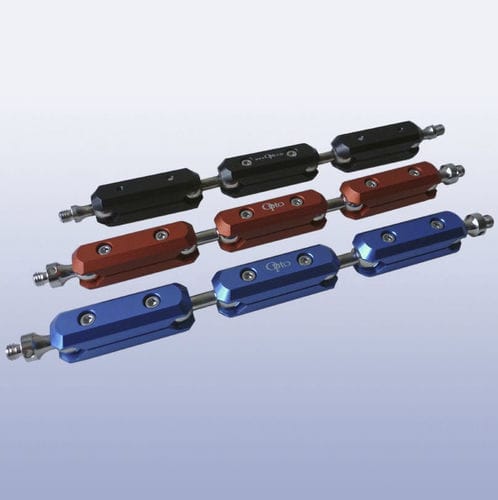

Colours: black, blue, red
Personal engraving on demand
Prices: for 1 link: 37,- EUR, 2 links: 59,- EUR, 3 links: 83,- EUR ex works / plus packaging

Accessories: clamps, adapters, holders, Adapter plate for flat surfaces, Universal Clamps, Guard Plate, LED Spot Illumination

Parameter Name	Parameter Value
Drive type	mechanical
Gripping device	with clamping system
Applications	for mechanical components for tools
Configuration	jib-crane
Other characteristics	ergonomic articulated
Domain	industrial for small spaces for mobile applications for clean environments optical
Carrying capacity	Max.: 2 kg (4.4 lb)Min.: 0 kg (0 lb)
