Mechanical manipulator arm 100-IC1-66

Mechanical manipulator arm 100-IC1-66

Mechanical manipulator arm 100-IC1-66

About

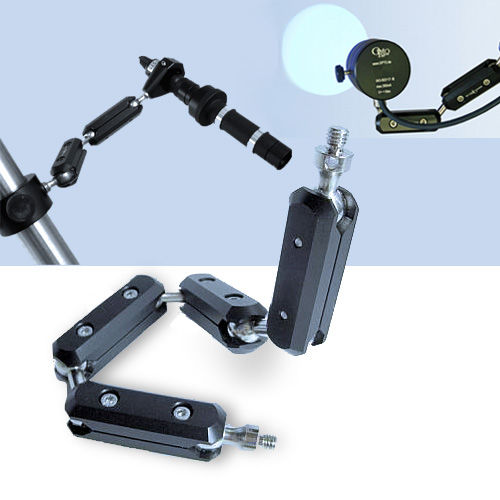

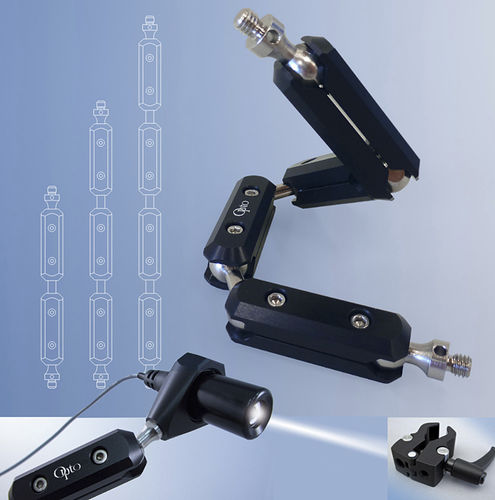

For precise, secure positioning of cameras, light sources or any other optical accessory in any environment, Opto jointed couplers are the ideal solution.

Precision manufactured in Germany from high grade steel and aluminium, jointed couplers provide a durable, yet economical mounting solution that is cleanroom compatible, and thanks to a wide variety of standard connection threads, unlimited in application! These components are resistant to vibration, and offer a dependable compatibility with accessories.

Application & Markets
• Mounting of cameras with 1/4'' thread for e.g. surveillance, code readers or in automations
• Mounting of illumination components in Machine Vision and Microscopy
• Fine positioning of sensors in rough environments such as sodering or outdoor applications

Variations (min.-max.):
Jointed Couplers: 1-6 links
threads: M6-M6 or M6-1/4''
length: 72mm - 370mm
max. loads: 0.3kg - 5.0kg
Prices: for 1 link: 37,- EUR, 2 links: 59,- EUR, 3 links: 83,- EUR ex works / plus packaging

Article: 100-JC1-66, unit 1 link, thread M6-M6, length 72mm, max. load 5.0kg

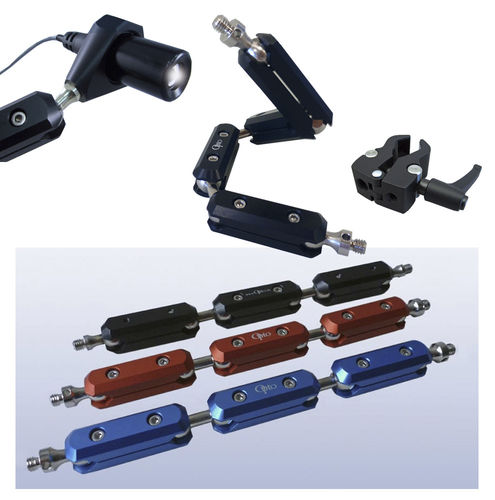

Accessories: clamps, adapters, holders, Adapter plate for flat surfaces, Universal Clamps, Guard Plate, LED Spot Illumination



PARAMETERS

Parameter Name Parameter Value
Drive type
mechanical
Gripping device
with clamping system
Applications
  • for mechanical components
  • for tools
  • positioning
Configuration
jib-crane
Other characteristics
  • ergonomic
  • articulated-arm
Domain
  • industrial
  • for small spaces
  • for mobile applications
  • for clean environments
  • optical
Carrying capacity
Max.: 5 kg (11 lb)Min.: 0.3 kg (0.7 lb)
