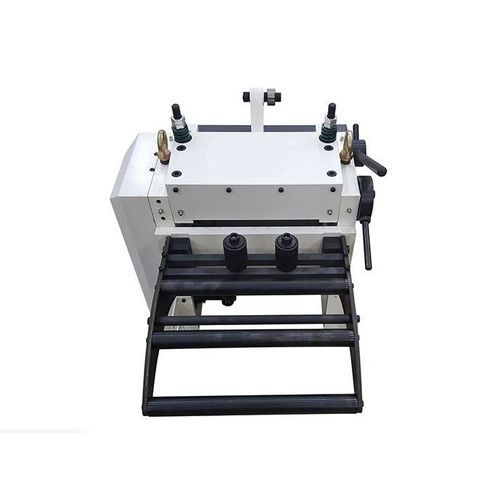

NCF is SERVO FEEDER with mechanical release. It can feeds sheet metal coil material thickness 0.1-1.6mm, with max. feeding speed 30m/min. Thanks to Yaskawa servo system and Mitsubishi PLC, it can ensure t/-0.1mm feeding precision. A mounting plate can help the servo feeder install to press machine easily, Or you can choose a separate bracket for better stability.

Raw Material Type: Hot-Rolled Metal steel, Cold
Rolled Metal steel, Galvanized Metal steel, Stainless Steel etc.
Coil Width: 100-400 mm
Material Thickness: 0.1-1.6mm
Yield Strength: <245 N/mm2
Tensile Strength: 392 N/mm2
Feeding pitch: 0-9999.99mm
Feeding Speed: 30m/min
Releasing Type: Mechanical
PLC: Mitsubishi, Japan
Servo Motor and Driver: Mitsubishi, Japan/ Siemens, Germany
Driver: Mitsubishi, Japan
Touch Screen: WEINVIEW, Taiwan/Mitsubishi, Japan
Function: Feeding The Coil Strips Into The Press Machine
Applications: Pressing Line/ Metal Stamping Line/Forming Line

Servo feeder machine is one type smart and easy to operate feeder machine in the market. It's very popular all over the word, This kinds of feeder machine can feed metal strips width to 1300mm, thickness up to 6.0mm and Max. Feeding speed reaches 30m/min. With a high concentric mechanical structure and precision parts, combined servo control system, can achieve precision feeding performance in 0.1mm. NC servo feeder machine can be found in many different stamping product line such as hardware stamping line, saw blade stamping line, knives pressing line, motorcycle parts stamping line, car license plate stamping line, small auto parts stamping line, computer and electronic components stamping lines etc.

Parameter Name	Parameter Value
Type	mechanical
Operating mode	servo-driven
Product applications	machine plate sheet
