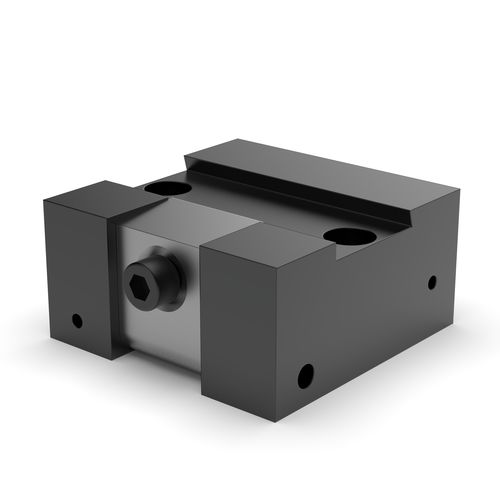

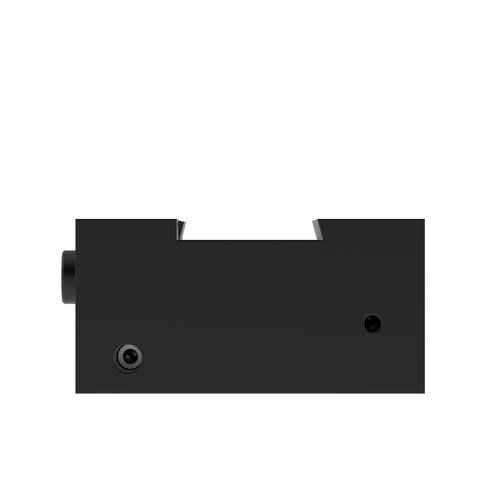

Mechanical raw parts clamping units are used on 5- and multi-axis machines.
You get a maximum degree of liberty due to the small dimension in combination with palletizing systems.

A maximum clamping force is attained by the back cut in the fix jaw and the clamping jaw.
An additional slot stone can be used for axial positioning.

Form cutters to prepare workpieces are available on request.

Working steps:

1. Sawing raw material
2. Machining dovetail contour
3. Clamping raw material

Advantages at a glance

Small disturbance range
Maximum access
Material: steel
Finish: hardened, black-finished

Only 3 – 5 mm clamping depth necessary
Clamping from outside to inside (external clamping)
Pairing accuracy 0,02 mm

Explanation type: model length (mm)

Type: RS 60, RS 100.

Please specify the type when raising a request.

Parameter Name	Parameter Value
Type	mechanical
Applications	machining workpiece
Other characteristics	steel
