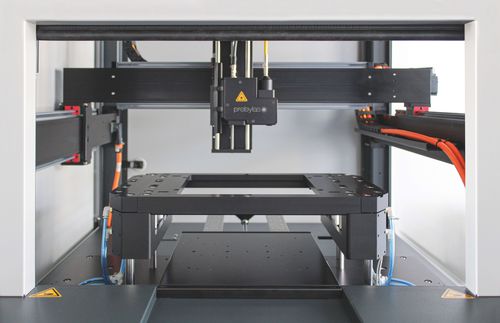

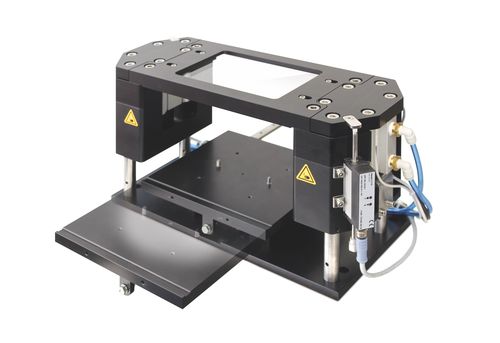

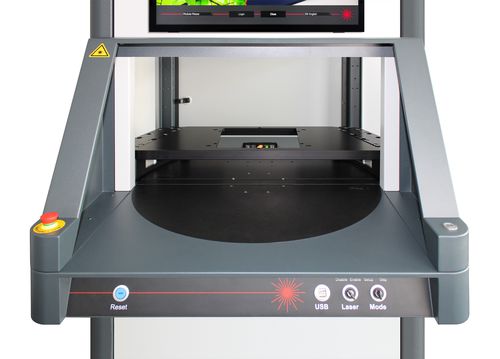

The clamping unit presses the workpieces to be welded against one another. The workpieces are inserted in part-specific cavities on the drawer. The upper clamping plate moves down by pneumatic or electric actuation and presses the workpieces together. The upper clamping tool can be a transparent glass plate, a metal frame with part-specific cutouts for the laser beam, or a combination
of both.

For process and quality control the clamping unit can be equipped with travel or force sensors. The clamping travel can be monitored with the distance measurement capability. In the simultaneous or quasi-simultaneous process type
also, the travel during welding can be measured, analyzed, or used for direct process control.


Type clamping unit - small - large
Welding area - 150 x 100 mm - 240 x 240 mm
Part width maximal - 210 mm - 300 mm

Clamping stroke: 20 mm - extendable on request
Height of parts and cavity: extandable from 65 mm in steps of 20 mm
Drawer movement: manual, pneumatic or electric
Actuation clamping force: pneumatic (6 bar) or electric
Displacement sensors: 1 or 2 with a resolution of 10 µm
Force sensors: 1 or 2 with resolution 5 N
Clamping units for parts larger than described above are always individually designed and constructed.

In addition to the clamping unit, we also offer part-specific cavities and clamping tools such as clamping glass or clamping frame.

part-specific cavity
clamping glass
clamping frame

Parameter Name	Parameter Value
Type	mechanical manual pneumatic
Applications	welding
Other characteristics	steel compact adjustable heavy-duty high-accuracy modular with indexing
Clamping force	Max.: 7,000 NMin.: 50 N2,300 N, 7,000 N
